Electrical Safety Analyzers

- Compact and lightweight design
- Full compliance to international and local safety standards IEC/EN 62353, AAMI/IEC/EN
- 60601-1, IEC 61010, NFPA-99 and AS/NZ 3551
- Battery powered earth/ground bond, insulation and leakage testing
- Additional 50V and 100V DC insulation tests for low voltage equipment
- Accurate high current, low energy earth bond testing


On-Board Storage
Storage for test records, and customizable sequences and codes
Portability with Battery Powered Tests
Lightweight and portable with battery-powered testing
International & Local Testing Standards
IEC/EN 62353, AAMI/IEC/EN 60601-1, IEC 61010, NFPA-99, AS/NZ 3551
Accurate and reliable earth continuity testing
Features a high current low power zap circuit

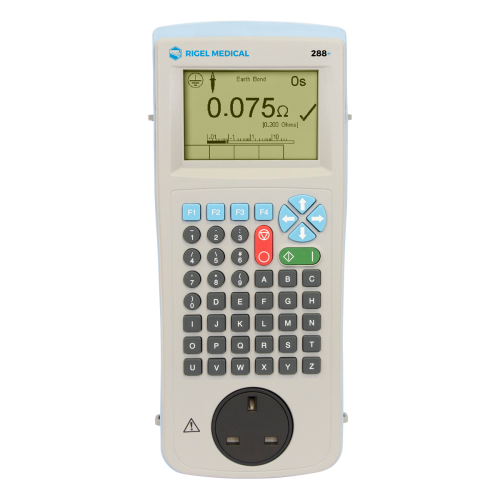

The Rigel 288+ Electrical Safety Analyzer

The Rigel 288+ electrical safety analyzer offers an accurate and fast solution for meeting international and local safety standards.

Enjoy complete freedom to move around, without the need for mains voltage, thanks to battery powered test capability. Using standard AA batteries, tests can be carried out for insulation, earth/ground bond testing, and touch or point-to-point leakage current testing.

Why choose the Rigel 288+ electrical safety analyzer

  • Test to IEC/EN 62353, AAMI/IEC/EN 60601-1 & more
  • Built-in electronic data storage
  • Flexible user-definable test routines
  • Battery-powered leakage, insulation & earth/ground bond tests
  • 50/100/250/500V DC insulation testing
  • Automatic secondary verification ensures the correct result first time
  • Small & compact with direct printing via Bluetooth connectivity
  • Available in a wide range of power configurations
  • Compatible with Med-eBase for simple asset management

Watch the Rigel 288+ overview video

In this short video, Michael Walton, Applications Engineer at Rigel medical covers the main features of the Rigel 288+ Electrical Safety Analyzer and shows how it can test to both IEC 60601 and IEC 62353.

The Rigel 288+ Downloader App

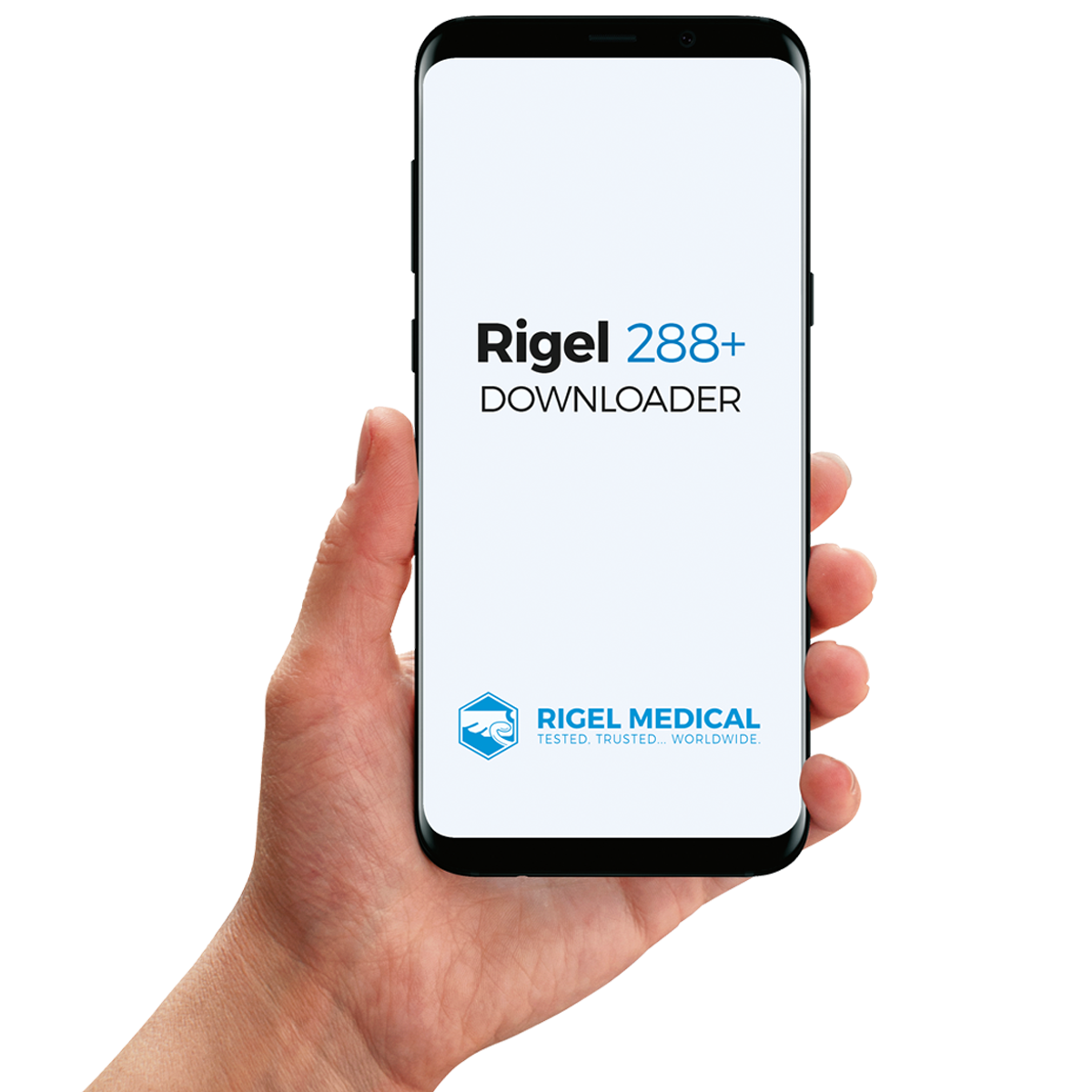

Transfer medical device test data straight from your pocket. The Rigel 288+ Downloader is an app built to make paperless and wireless data transfer possible for biomedical and clinical engineers performing electrical safety tests, using just a smartphone or tablet.

The app works by generating a PDF containing the test data that can be saved, printed or sent via email and attached to a works order or so they can be stored to a central database or a CMMS.

Request a Quote


Optional Accessories

Technical Specifications

Earth Continuity
Method2 wire technique, using 'zero' lead function.
Test Current>+200mA, -200mA DC into 2 ohms
Max Test Voltage4-24V RMS o/c
Measuring Range (low range)0.001 – 0.999 ohms @ 0.001 ohms resolution
Measuring Range (mid range)1.00 – 9.99 ohms /@ 0.01 ohms resolution
Measuring Range (high range)10.0 – 19.9 ohms @ 0.1 ohms resolution
Accuracy± 3% of reading + 10 m ohms
Direct Leakage Measurement
Measuring Range4μA to 9999μA
Accuracy± 5% or reading +2 counts
Mains on A.P. voltageF-type only @ 110% of mains
Measuring DeviceAs per IEC 60601-1 requirements
Measurement TypeSeparate AC & DC for Patient (Auxiliary) Leakage to IEC 60601, True RMS for all remaining Leakage tests
Alternative Leakage Measurements
Test Voltage250V at mains frequency
Test Current3.5 mA current limited
Measurement Range4μA to 9999μA
Measurement Resolution1μA
Measurement Accuracy±5% of reading + 2 counts
Measurement TypeTrue RMS
Measuring DeviceAs per IEC 60601-1
Mains Outlet Test
Input voltage range0-300V AC
Max current16A
MeasuresL – E, N – E
Accuracy± 5% of reading + 2 counts
General Specification
Mains Power230V AC ±10%, 50-60Hz +/- 1Hz, 120V AC ±10%, 60Hz +/- 1Hz (USA model)
Battery6 x 1.5V AA
Weights1.6 kg / 3.5 lbs including batteries
Size(L x W x D) 270 x 110 x 75 mm / 10.5 x 4 x 3”
Operating Conditions0'C - 40'C, 32'F - 104'F, 0-90% RH - NC
Storage Environment-15'C - +60'C / 5'F - 140'F
Environmental ProtectionIP 40
Insulation Resistance
MeasurementEUT to earth/ground, EUT to AP, AP to earth/ground
Voltage50 / 100 / 250 & 500V DC @1mA
Range (low range) @ 50V DC0.01Mohms - 10 Mohms
Range (low range) @ Above 50V DC0.01Mohms - 20Mohms
Accuracy (low range)± 5% of reading +2 counts
Range (high range) @ 250V DC20Mohms – 50Mohms
Range (high range) @ 500V DC20Mohms – 100Mohms
Accuracy (high range)±10% +2 counts
Resolution0.01Mohms
Differential Leakage Measurement
Measuring Range75μA to 9999μA
Accuracy±5% of reading + 5 counts
Measurement / display resolution1μA
Measurement TypeTrue RMS
Measuring DeviceFrequency response characteristics to IEC 60601-1
Power Measurement
Range0.1kVA – 4kVA
Accuracy±10% + 2 counts
IEC Mains Lead Test
Test Duration2s
TestContinuity of all conductors, Insulation and Polarity
Standard Accessories (supplied with 288+)
Calibration certificate
Earth/ground bond test probe with clip
Earth/ground bond clip lead
Patient Applied part module
10 Applied part adaptors
Detachable 2 meter mains cable
Bluetooth USB dongle
Electronic instruction manual
Quick start guide
