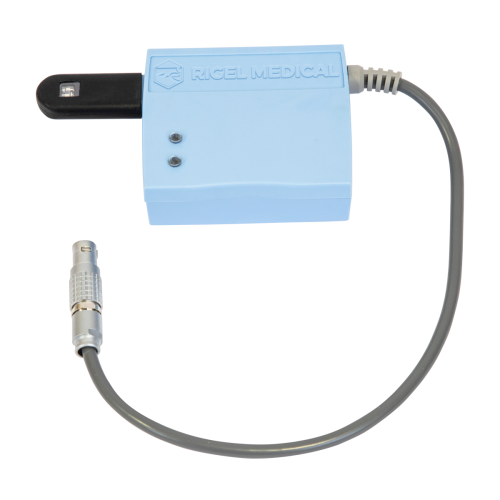

Puls R Front


Puls-R SpO2 Finger Simulator

- Easy and accurate SpO2 probe placement
- Bright LEDs confirms correct probe connection
- Easy configuration to meet specific R-curves

PULS-R SpO2 Finger Simulator

The compact Rigel PULS-R universal SpO2 simulation finger is the latest accessory to the Rigel UNI-SIM and SP-SIM vital-signs simulators.

Able to simulate accurate SpO2 simulations in 1% resolution from as low as 30%* using the pre-programmed manufacturer specific R-curves,the PULS-R can also be configured to meet customer specific R-curves using the simple to use configuration tool.

* subject to monitor capability

Supported default R-curves

Beijing Choice


GE Tuffsat




Nellcor Oximax

Nihon Kohden



Phillips / HP

Which R-curves do I need to download?

The R-curves you need to download is dependent on the version of the Puls-R SpO2 Finger Simulator you have purchased.

If you procured your accessory prior to March 2024, the likelihood is that you have a 1st generation model and require our MK I R-curves, which can be found in the download section below.

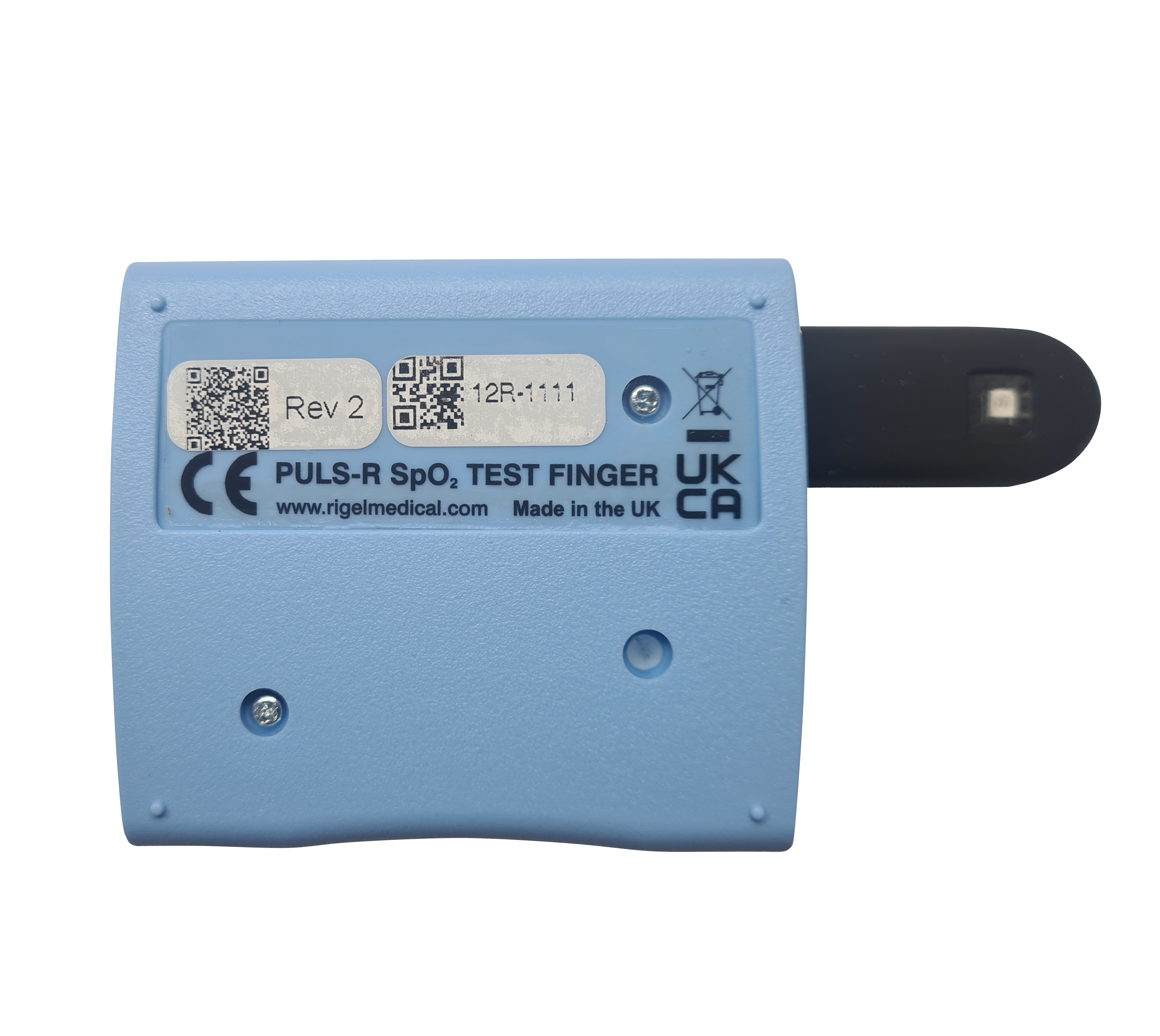

If you have our new 2nd generation model, you will see a ‘Rev 2’ QR code on the reverse of your unit, as shown in the image below. In this scenario, it is imperative that you download the newest MK II R-Curves.

Please note, if you update the firmware of your Uni-Sim to version 4.14, both MK I and MK II R-curves will be installed on your device. If you’re using an older model, please download the new R-curves below.

Accuracy of simulation when used with the corresponding R-curves

Resolution Range Repeatability*
1% steps 30-60% ±5%**
1% steps 60-90% ±3%
1% steps 90-100% ±1%

*Based on using the same probe and monitor setup
**Note that some monitor types might not be able to display low range sats

Request a Quote

Technical Specifications

PULS-R SpO2 Finger Simulator
Operating temperature0-40°C
Dimensions78 x 68 x 29 mm
Finger shape40 x 18 mm
Weight200 grams


Do you own this product?

Register your Puls-R today to activate your warranty and to stay up to date with the latest product updates, news and support information.
