410A920
Safetest 60+ Electrical Safety Analyser
Our enhanced entry-level electrical safety analyzer for medical devices
– Point to point insulation testing 100K – 100MΩ
– Dynamic pass/fail thresholds during measurement
– Compact, robust and portable design
– Manual control of fault conditions and tests
– Accurate high current, low energy earth bond testing
– Patient leakage testing
– Point-to-point insulation testing
– Automatic warning of secondary earth/ground paths
Patient applied parts testing
Manual control of fault conditions and tests
Dynamic pass/fail thresholds during measurement
Accurate high current, low energy earth bond testing

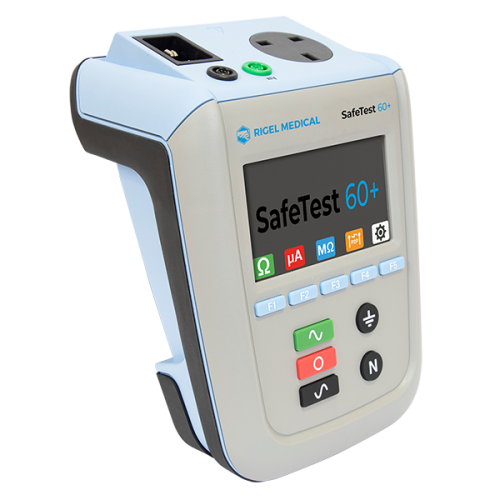

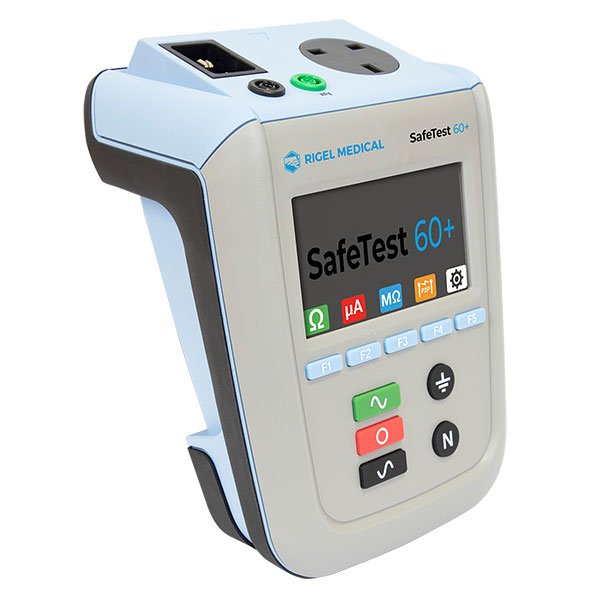

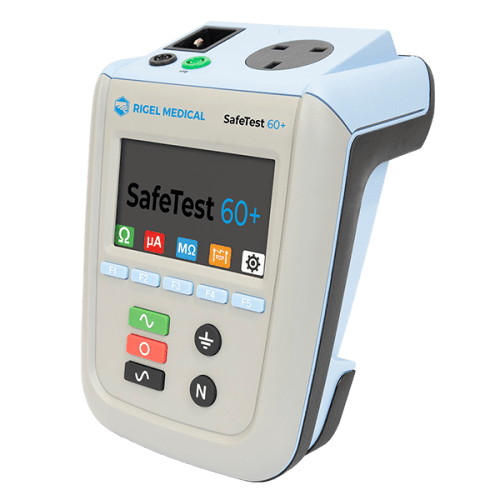

Rigel SafeTest 60+ Electrical Safety Analyzer
The newest upgrade to the SafeTest series. The SafeTest 60+ has been designed specifically to implement high volumes of medical and lab testing. Available in a wide range of power configurations to suit local and international markets. Discover accessible and clear UI, allowing you to select the required tests with a single key.
It is ideal for testing high volumes of medical and laboratory equipment that does not require patient lead testing, such as beds, hoists, infusion pumps, CPAP’s and centrifuges etc. However, the SafeTest 60+ now provides basic testing of medical equipment with applied parts, both patient current leakage and insulation measurement to ensure electrical safety.
The SafeTest 60+ includes a range of safety tests to enable compliance with a range of international safety standards, including leakage testing to: IEC 60601, 62353, 61010 and NFPA-99, earth bond testing to 62353, 61010 and NFPA-99, and insulation testing to IEC 62353.
Why buy the SafeTest 60+?
- The SafeTest 60+ is available in a wide range of power configurations to suit local and international markets
- With a large colour display and a colour-coded user interface, it’s easy to select the required tests with a single key press, whilst a fast step-through of the test routine makes the testing process speedy and dependable.
Watch the SafeTest 60+ overview video
In this short video, find out how the Rigel SafeTest 60+ Electrical Safety Analyzer supports fast, efficient testing of medical equipment, with an overview of its key features, the tests it performs, and real-world user feedback.
Optional Accessories
SAFETEST APPLIED PARTS BOX
All Accessories
SAFETEST POWER CORDS
All Accessories
CARRY CASES
All Accessories
TEST LEADS
All Accessories
Technical Specifications
| Earth Continuity | |
|---|---|
| Pre-pulse | 2 wire ZAP technique |
| Pulse Shape | Exponential Decay |
| Decay Time | 200 – 550μs to 5% of peak (0.1 to 0.8Ω respectively) |
| Method | Wire |
| Measurement Current | >± 200mADC into 2Ω |
| Max Test Voltage | 4-24Vrms o/c |
| Measuring Range (Low Range) | 0.001 – 0.999Ω 0.001Ω |
| Resolution (Mid Range) | 0.01Ω |
| Resolution (High Range) | 0.1Ω |
| Measuring Range (Mid Range) | 1.00 – 9.99Ω |
| Measuring Range (High Range) | 1.00 – 9.99Ω |
| Accuracy | ± 1% of value, ± 5mΩ ± 1% of value, ± 5mΩ |
| Circuit Protection | Test inhibited if ≥ 30VAC or DC at 4mm inputs |
| Insulation Resistance | |
|---|---|
| Measurement | Point-to-point and EUT to Earth |
| Voltage | 500VDC @1mA |
| Maximum O/C Voltage | Less than 600VDC |
| Range | 100K – 100MΩ ± 5% ± 2 Digits |
| Resolution | 0.01MΩ |
| Short Circuit Current | Less than 2mA |
| Powered Leakage Measurements | |
|---|---|
| IEC 62353 | Equipment Leakage (Direct) |
| IEC / AAMI 60601 | Earth + Enclosure Leakage + Patient Leakage |
| NFPA-99 | Ground + Chassis Leakage + Patient Leakage |
| IEC 61010 | Touch Leakage, Touch Voltage |
| Test Voltage | Mains Supply Voltage |
| Measuring Range | 0.1 – 9999μA (0.1 – 8000μA typical for IEC61010) |
| Measurement/Display Resolution | 0.1μA |
| Accuracy | ± 2%, ± 5μA |
| Mains Reversal | Soft Key |
| Single Fault Conditions | Open Neutral and Open Earth Via Soft Key |
| Frequency Response | IEC 60601 – 62353, NFPA-99, and IEC 61010 selectable |
| Voltage Measurement | |
|---|---|
| Application | L-N, L-E, N-E and touch voltage (IEC 61010) |
| Range | 0.0V – 300VAC |
| Resolution | 0.1Hz |
| Accuracy | Unspecified |
| Mains frequency | 45.0 – 66.0Hz |
| EUT Load Current Measurement | |
|---|---|
| Range | 0.0A – 20.0A |
| Resolution | 0.1A |
| Accuracy | ±5% ± 2 digits |
| Power Source | |
|---|---|
| Maximum Current Rating | 20A @ 120V / 16A @ 230V |
| Duty cycle (@21°C ambient) | 16A to 20A, 3 min. on/ 10 min. off 10A to 15A, 3 min. on/ 5 min. off 0A to 10A, continuous |
| Mains Power | 90-264V 48-64Hz |
| General Specifications | |
|---|---|
| Weight | 1.1kg/2lbs (unit) 2.2kg/5lbs (complete with accessories) |
| Size (L x W x D) | 225 x 150 x 100mm / 9 x 6 x 4” |
| Operating Temperature | 0 to 40°C |
| Humidity | 0 – 98% Relative humidity, non-condensating |
| Storage Temperature | -10 to 50°C |
| Altitude | 0 – 2000m |
| Ingress Protection | IP 40 |
| Operating Pollution Degree | 2, according to IEC 60529 |
| Overvoltage Category | CAT II 300V |
