407A910
62353+

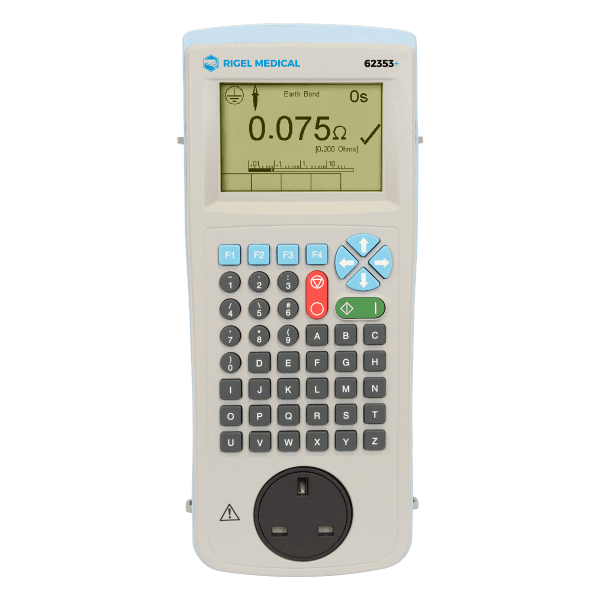

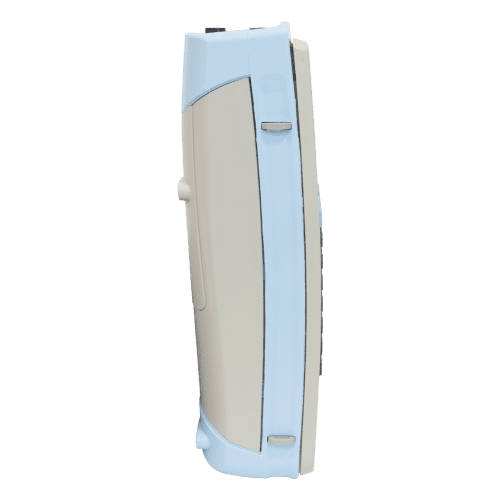

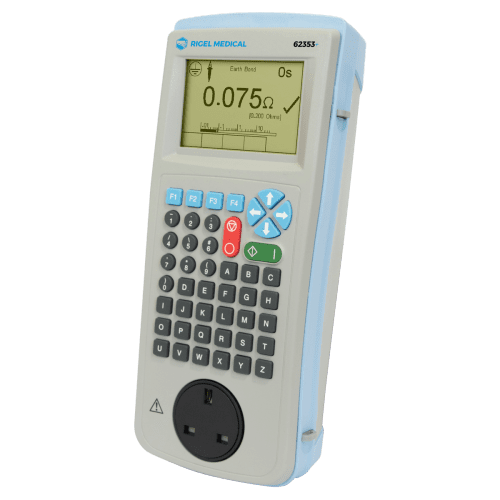

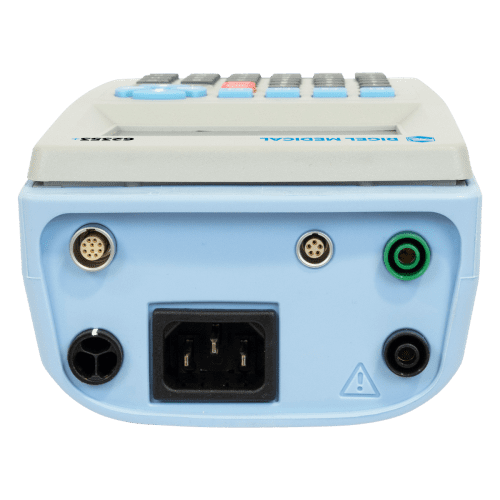

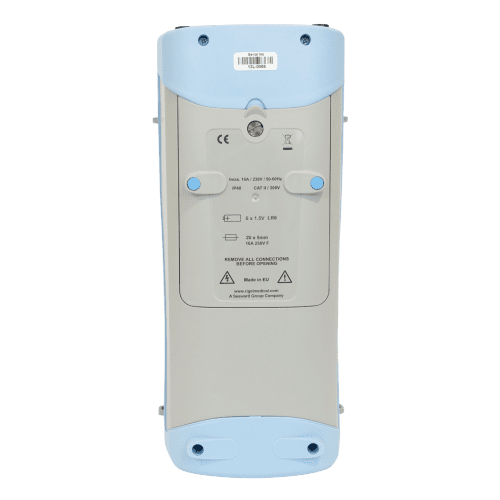

Rigel 62353+ Electrical Safety Analyser
– Test to IEC / EN 62353, NFPA-99, AS / NZ 3551 & more
– Built -in electronic data storage
– Flexible user-definable test routines
– Simple PC communication link
– Battery-powered insulation and earth/ground bond tests
– 50/100/250/500V DC insulation testing
– Automatic secondary verification ensures the correct result first time
Battery Powered Testing
Lightweight and portable with battery-powered testing
On-Board Storage
Storage for test records, and customizable sequences and codes
Tests to International Standards
IEC/EN 62353, NFPA-99, and AS/NZS 3551
Earth continuity testing
Features an accurate, high current low power zap circuit
Rigel 62353+ Electrical Safety Analyzer
The Rigel 62353+ is the smallest and most flexible electrical safety analyzer on the market. It provides an accurate and fast solution for testing in accordance with the IEC 62353 safety standard.
Offering a range of tests without the need for mains power, the 62353+ is capable of conducting battery-powered insulation and earth/ground bond testing. This offers complete freedom to move around in often crowded rooms during the installation process, eliminating the inconvenience of trailing mains cables.
The 62353+ has low voltage insulation resistance tests (50V DC and 100V DC) to complement the 250V DC and 500V DC insulation tests that were present in its predecessor, the Rigel 62353. These tests conform to growing manufacturer’s test requirements for increasingly popular equipment running on 24V DC and 48V DC, such as operating tables, lights and mobile X-rays.
Possible Applications for the Rigel 62353+
- Routine testing of medical electrical equipment
- Service tool for performance testing
- Asset management
- Fast and efficient testing of IEC leads
- Bond testing on (medical) installations and non-medical equipment
Request a Quote
Optional Accessories
288+/62353+ POWER CORDS
Accessories
TEST LEADS
All Accessories
Technical Specifications
| Earth Continuity | |
|---|---|
| Method | 2 wire technique, using ‘zero’ lead function. |
| Test Current | >+200mA, -200mA DC into 2 ohms |
| Max Test Voltage | 4-24V RMS o/c |
| Measuring Range (low range) | 0.001 – 0.999 ohms @ 0.001 ohms resolution |
| Measuring Range (mid range) | 1.00 – 9.99 ohms /@ 0.01 ohms resolution |
| Measuring Range (high range) | 10.0 – 19.9 ohms @ 0.1 ohms resolution |
| Accuracy | ± 3% of reading + 10 m ohms |
| Insulation Resistance | |
|---|---|
| Measurement | Resolution |
| Voltage | 50 / 100 / 250 & 500V DC @1mA |
| Range (low range) @ 50V DC | 0.01Mohms – 10 Mohms |
| Range (low range) @ Above 50V DC | 0.01Mohms – 20Mohms |
| Accuracy (low range) | ± 5% of reading +2 counts |
| Range (high range) @ 250V DC | 20Mohms – 50Mohms |
| Range (high range) @ 500V DC | 20Mohms – 100Mohms |
| Accuracy (high range) | ±10% +2 counts |
| Resolution | 0.01Mohms |
| Direct Leakage Measurement | |
|---|---|
| Measuring Range | 4μA to 9999μA |
| Accuracy | ± 5% or reading +2 counts |
| Measuring Device | As per IEC 60601-1 requirements |
| Measurement Type | True RMS |
| Differential Leakage Measurement | |
|---|---|
| Measuring Range | 75μA to 9999μA |
| Accuracy | ±5% of reading + 5 counts |
| Measurement / display resolution | 1μA |
| Measurement Type | True RMS |
| Measuring Device | Frequency response characteristics to IEC 60601-1 |
| Alternative Leakage Measurements | |
|---|---|
| Test Voltage | 250V at mains frequency |
| Test Current | 3.5 mA current limited |
| Measurement Range | 4μA to 9999μA |
| Measurement Resolution | 1μA |
| Measurement Accuracy | ±5% of reading + 2 counts |
| Measurement Type | True RMS |
| Measuring Device | As per IEC 60601-1 |
| Power Measurement | |
|---|---|
| Method | VA rating |
| Range | 0.1kVA – 4kVA |
| Accuracy | ±10% + 2 counts |
| Mains Outlet Test | |
|---|---|
| Input voltage range | 0-300V AC |
| Max current | 16A |
| Measures | L – E, N – E |
| Accuracy | ± 5% of reading + 2 counts |
| IEC Mains Lead Test | |
|---|---|
| Test Duration | IEC Mains Lead Test |
| Test | Continuity of all conductors, Insulation and Polarity |
| General Specification | |
|---|---|
| Mains Power | 230V AC ±10%, 50-60Hz +/- 1Hz, 120V AC ±10%, 60Hz +/- 1Hz (USA model) |
| Battery | 6 x 1.5V AA (Batteries not included) |
| Weights | 1.6 kg / 3.5 lbs including batteries |
| Size | (L x W x D) 270 x 110 x 75 mm / 10.5 x 4 x 3” |
| Operating Conditions | 0’C – 40’C, 32’F – 104’F, 0-90% RH – NC |
| Storage Environment | -15’C – +60’C / 5’F – 140’F |
| Environmental Protection | IP 40 |
| Standard Accessories (supplied with 62353+) | |
|---|---|
| Calibration certificate | |
| Carrying case | |
| Earth/ground bond test probe with clip | |
| Earth/ground bond clip lead | |
| Patient Applied part module | |
| 2 Applied part adaptors | |
| Detachable 2 meter mains cable | |
| Electronic instruction manual | |
| Quick start guide | |
| Application software |
