SafeTest 50
410A930

SafeTest 50

An electrical safety analyzer for medical devices


USA Only

- Rugged, reliable and portable design
- Large color display and easy to use interface
- Tests and fault conditions can be selected with a single key press
- Leakage testing to NFPA-99, ES 60601, IEC 62353 and 61010
- Ground bond testing to NFPA-99, IEC 62353 and 61010
- Accurate high current, low energy earth bond testing


Portable and rugged design
A compact, reliable and dedicated medical safety analyzer
Single Key Press Testing
Fast selection of the tests and manual control of fault conditions
Multiple Safety Tests
Tests to a range of standards including NFPA-99, ES 60601, IEC 62353 and 61010
Large Colour Display
A large color display with a color-coded user interface

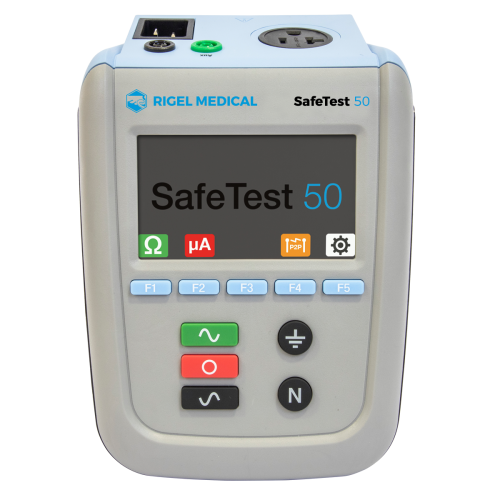

Rigel SafeTest 50 Electrical Safety Analyzer

With a large color display and a color-coded user interface, it’s easy to select the required tests with a single key press. A fast selection of the test routine makes the testing process speedy and dependable.

While compact, the SafeTest 50 includes a range of safety tests to enable compliance with a range of international safety standards, including leakage testing to NFPA-99, ES 60601, IEC 62353 and 61010, ground bond testing to NFPA-99, IEC 62353 and 61010.

Full manual control offers the benefit of executing only those specific tests that are required and provide the user with full control of the power cycles, making testing simple, easy and fast.

Rigel SafeTest 50 Electrical/Analysis Functions:

Specific to ES 60601:
- Ground leakage
- Chassis leakage

Specific to NFPA-99:
- Ground leakage
- Chassis leakage
- Ground bond testing

Specific to IEC 62353:
- Equipment leakage
- Ground bond testing
Specific to IEC 61010:
- Touch leakage
- Touch voltage
- Ground bond testing

Electrical Safety Tests performed:
- Point-to-point testing
- Line voltage measurement
- Line frequency measurement
- Load current measurement

See the SafeTest 50 electrical safety analyzer in action


Optional Accessories

Technical Specifications

Ground Continuity
Method2 wire ZAP technique
Test Current>± 200mA DC into 2Ω (zapper circuit)
Max Test Voltage4-24Vrms o/c
Measuring Range (low range0.001 – 0.999Ω / 0.001Ω resolution
Measuring Range (mid range)1.00 – 9.99Ω / 0.01Ω resolution
Accuracy± 1% of value, ± 5 mΩ
Circuit ProtectionTest inhibited if ≥30VAC or DC at 4mm inputs
Voltage measurement
ApplicationL-N, L-E, N-E and touch voltage (IEC 61010)
Range0.0V – 300VAC
Resolution0.1Hz
Accuracy± 2% ± 5 digits (between 10V - 270VAC)
Mains Frequency45 to 66Hz
Power Source
Maximum Current Rating20A @ 120V / 16A @ 230V
Duty Cycle15A to 20A, 5 min. on/5 min. off
10A to 15A, 7 min. on/3 min. off
0A to 10A, continuous
Mains Power90-264V 48-64Hz
DUT Socket20A / 120VAC
NEMA 5-20R
Powered Leakage Measurements
IEC 62353Equipment Leakage (Direct)
ES 60601Ground + Chassis Leakage
NFPA-99Ground + Chassis Leakage
IEC 61010Touch Leakage, Touch Voltage
Test VoltageMains Supply Voltage
Measuring Range0.1- 9999µA (0.1-8000µA typical for IEC 61010)
Measurement / Display Resolution0.1µA
Accuracy± 2%, ± 5µA
Mains ReversaSoftkey
Single Fault ConditionsOpen Neutral via softkey
Open Ground via softkey
Frequency ResponseES 60601, NFPA-99, IEC 62353 and 61010
EUT Load Current Measurement
Range0A – 20A
Resolution0.1A
Accuracy±5% ± 2 digits
General Specifications
Weight2.5lbs (unit)
5lbs (complete with accessories)
Size (L x W x D)9 x 6 x 4”
