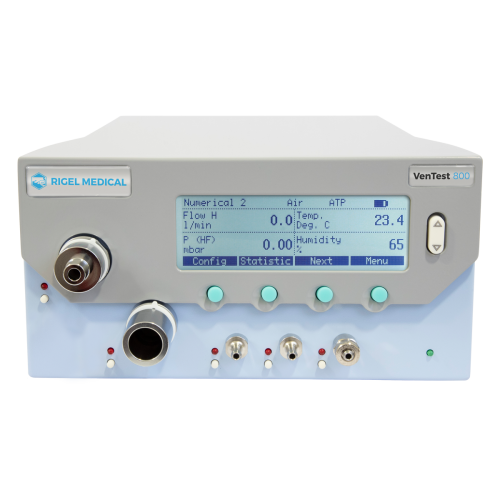

VenTest 800 Series

High-performance gas flow analyzers for ventilator measurement and calibration

- Compatible with gas standards and gas type
- All-in-one gas flow analyzer
- Measures and calculates all common respiratory parameters
- Built-in data storage
- Portable with battery operation


Rigel VenTest 800 Series

VenTest 800 - The standard model for universal applications

VenTest 810 VAC - Includes an additional sensor for vacuum measurements up to +/-1 bar

VenTest 820 LOW - Includes an additional sensor measuring minimal pressures up to 5 mbar

Measuring your pneumatic equipment for reliability and precision with a dependable calibration tool is critical in avoiding fatal errors. Precision and reliability are exactly what the VenTest Series provides.

The VenTest measures flow, pressure, temperature, humidity and O2 concentrations bi-directionally. The adult, pediatric and high-frequency ventilation measuring modes make the VenTest the ideal calibration tool for all ventilators, anesthesia machines and spirometers.

The VenTest distinguishes itself from other calibration tools by combining a simple, intuitive multilingual user interface with the most precise sensor technology.

Key features the VenTest 800 Series

  • All-in-one analyzer
  • Measures and calculates all common respiratory parameters
  • Compatible with gas standards and gas type
  • Built-in data storage with optional software for total traceability
  • USB, RS-232 and external trigger interface
  • Portable with battery operation
  • Instant gas concentration measurements with optional MultiGasAnalyser™ OR-703

With the push of a button, all measured values can be stored directly on the VenTest and later retrieved for documentation purposes. Optional FlowLab™ software provides a simple and useful tool to analyze all ventilation parameters including real time flow / pressure curves, functional zoom and certification papers.

Ventilator Analysis Test Functions:

  • Bidirectional flow
  • High and low pressure
  • Differential and barometric pressure
  • Oxygen concentration
  • Temperature
  • Dew point
  • 7 anesthetic gas concentrations (with OR-703)
  • Respiratory parameters including; rate, time Ti, Te, I:E ratio, Ti:Ttotal ratio, breadth volumes Vti, Vte, minute volumes Vi, Ve, pressure Ppeak, Pmean, PEEP, Pplateau, Peak flow, Compliance and Adult, pediatric and HFO trigger

Product Part Number
VenTest 800 800A9311
VenTest 810 800A9321
VenTest 820 800A9331
Rigel VenTest 800 Kit 800A9251
Rigel VenTest 810 Kit 800A9261
Rigel VenTest 820 Kit 800A9271
Rigel VenTest 800 Kit Elite 800A9281
Rigel VenTest 810 Kit Elite 800A9291
Rigel VenTest 820 Kit Elite 800A9301

Please note: The 2019 version of the VenTest Series does not feature an ethernet port or the earth bolt on the back of the device.


Request a Quote


Optional Accessories

Technical Specifications

Electrical & Physical Data
AC Input90 - 260VAC, 50-60Hz
Battery (Lead Rechargeable Battery)3 hrs (with OR-703 2 hrs)
Power Consumption23VA
Weight3.7kg / 8lbs
Dimensions (W x D x H)22 x 25 x 12cm / 7 x 10 x 5”
Display
Graphic DisplayIntuitive user interface with numerical measuring values, statistics, volume trigger configuration, gas type selection and calibration menusDefault Spec Value
Communication Interfaces
USB for Windows Software FlowLab™, RS-232 for individual communication, TTL for external trigger and TSI4000 Protocol[br]Please note: The 2019 version of the VenTest Series does not feature an ethernet port or the earth bolt on the back of the device.
Data Storage
All parameters (measured as well as respiratory values)
RT-200 Emulation Mode
Simulates RT-200 style commands over the RS-232 interface
Conditions
Ambient Temperature15 - 40°C (59 - 104°F)
Humidity5 - 95% RH
Air Pressure700 - 1060 mbar
Storage and Transport Temperature-10–60°C
ApprovalsCE, CSA
