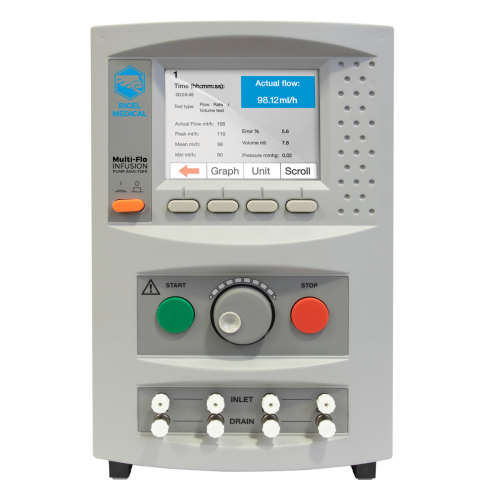

Multi Flo Front
385A910

Multi-Flo

Infusion Pump Analyzer that can double your test capacity

- IEC 60601-2-24 compliant
- 1, 2 and 4 individual channel configurations
- Instant flow and pressure
- Compatible with all infusion devices


Remote Control Interface
Control the Multi-Flo features using our Med-eBase software on a PC
Multi-Channel Configurations
Test up to four infusion devices simultaneously
Instantaneous Flow
Onscreen graph for flow measurements, even at low flow rates
Data Storage
Fully traceable results and automatic data capture

Multi-Flo Infusion Pump Analyzer

The market defining Rigel Multi-Flo Infusion Pump Analyzer is a portable instrument to accurately and swiftly verify the performance of all infusion devices.

The Rigel Multi-Flo infusion pump analyser offers ease of use, high accuracy readings and productivity improvements right from the start.

With the choice of single or multi-channel configuration, the Multi-Flo can test up to four infusion devices simultaneously across a range of 10μL up to 1500mL per hour, with all results being stored in the large internal memory. The Multi-Flo delivers unique accurate and instantaneous flow measurements even at low flow rates, enabling the user to test twice as many infusion devices within the same time period as other volumetric based analysers.

To help save even more time and to reduce the risk of human error, the Multi-Flo can also be programmed with manufacturer specific test routines which can then be automatically executed by the user on the device itself or controlled from a PC using the Med-eBase software solution.

To meet the requirements of IEC 60601-2-24, the Multi-Flo also provides accurate back pressure simulations, occlusion alarm monitoring and bolus (PCA) measurements, and a large colour graphics display presents the data in both numerical and graphical format.

A remote (PC) control interface is available via Rigel's test solution software, Med-eBase, allowing complete control of the Multi-Flo's features from the comfort of a PC. Requiring just a single USB connection per Multi-Flo, users can connect as many multi-channel Multi-Flo's as there are USB ports available, increasing the test capacity in high volume test environments.

Rigel Multi-Flo

Name Part Number
Multi-Flo 1 Channel 385a910
Multi-Flo 2 Channel 385a920
Multi-Flo 4 Channel 385a940
Multi-Flo Multi Channel 385a950

Request a Quote


Technical Specifications

Flow Measurement
Display Range0.010 to 1500ml/h
Max. Display Resolution>10μl/h
Measured Range0.100 to 1450ml/h
Occlusion/Back Pressure Measurement
Pressure Measurement Range-500 to 2500mmHg
Back Pressure Setting Range-200 to 600mmHg
Accuracy-500 to 1000mmHg ± 10mmHg
1000 to 2500mmHg ± 1% of reading
UnitmmHg, PSI, Bar, kPa
Resolution1mmHg
General Specifications
Storage15 x 24h of testing at 1 second sampling rate
Dimensions300 x 204 x 220mm/11.8 x 8 x 8.6” (w x d x h)
Weight5kg/11lbs (1 channel)
6kg/13lbs (2 channel)
8kg/18lbs (4 channel)
Mains Supply90-264VAC, 50/60 Hz, 60W
Mains Cable1ml to 30ml/h
Storage Environment0–50°C / 32–122°F
Operating Conditions15–40°C / 59–104°F
Environmental ProtectionIP40
PC CommunicationUSB B
Keyboard CommunicationUSB A
DisplayLCD color graphic display ¼” VGA
Flow Rare & Accuracy
701-1500ml/hr1+x)% of reading where x = 0.0033% x (flow rate -700ml/hr)
10-700ml/hr1% of reading
0.1-9.9ml/hr1% of reading + 0.005 ml/hr
Volume0.001 to 9999ml
Flow Update Rate1Hz
PCA / Bolus Measurements (Volume)
Display Range0.1 to 100ml
Measuring Range0.5 to 100m
Accuracy± 1% of the reading
Max. Resolution10μl
Basal Flow Rate1ml to 30ml/h
PressureMax. 2500mmHg
