SafeTest 99
417A910

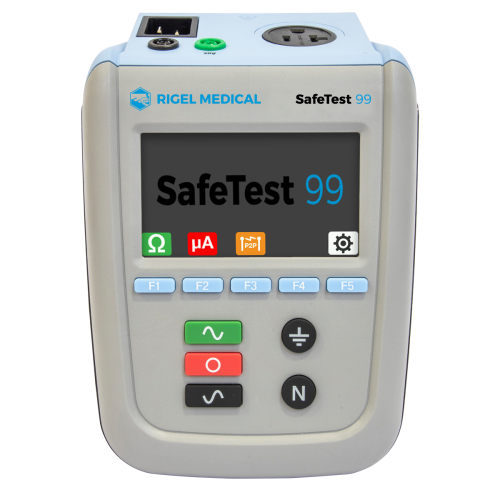

SafeTest 99

A medical safety analyzer with patient lead testing


USA Only

- Rugged, cost effective medical safety analyzer
- Large color display and easy to use interface
- Full range of medical electrical safety tests to NFPA-99
- 10 lead leakage patient testing
- Tests and fault conditions can be selected with a single key press
- Accurate high current, low energy earth bond testing


Patient Lead Testing
Patient lead leakage testing in accordance with NFPA-99
Zap Circuit Technology
Accurate high current, low energy ground continuity testing
Large color display
Color display with color coded user interface
Soft Key Operation
Fast step-through of test routines and manual control of fault conditions

More about the SafeTest 99

The SafeTest 99 is a simple, rugged and cost-effective medical safety analyzer for general electrical safety and patient lead testing. With a large color display and a color coded user interface, it's easy to select the required test at a touch if a button.

The SafeTest 99 is perfect for high volume testing of medical and laboratory equipment, with or without patient leads. Thanks to the easy to use interface and simple layout, and a fast selection of test routines, testing has never been so easy and dependable!

Compact and portable with a full range of safety tests in accordance with NFPA-99, the SafeTest 99 enables compliance and reduces downtime in medical and laboratory equipment.

Full manual control offers the benefit of executing only those specific tests that are required and provide the user with full control of the power cycles, making testing simple, easy and fast.

An automatic warning of secondary ground paths ensures users are made aware when invalid readings are made, thus ensuring correct and accurate test results first time, every time.

SafeTest 99 Demonstration Video

Key Features:

  • Patient lead leakage testing in accordance with NFPA-99.
  • Accurate high current, low energy ground continuity testing.
  • Fast step-through of test routines with minimized power breaks.
  • Secondary ground and isolated supply warnings to ensure valid tests.
  • Manual control of fault conditions.
  • Clear and vibrant color display.
  • Universal voltage input.
  • Patient lead adapter box included.
  • Ready to use, box to bench.
  • Supplied with protective carry case.

Electrical/analysis functions:

  • Ground Leakage
  • Chassis Leakage
  • Patient Lead Leakage
  • Ground Continuity

Electrical/analysis functions:

  • Point-to-point testing
  • Line voltage measurement
  • Line frequency measurement
  • Load current measurement

Request a Quote


Optional Accessories

Technical Specifications

Ground Continuity
Method2 wire ZAP technique
Test Current>± 200mADC into 2Ω
Max Test Voltage4-24Vrms o/c
Measuring Range (low range) Resolution0.001 - 0.999Ω
0.001Ω
Measuring Range (mid range) Resolution1.00 - 9.99Ω
0.01Ω
Measuring Range (high range) Resolution10.0 - 19.9Ω
0.1Ω
Accuracy±1% of value, ± 5mΩ
Circuit ProtectionTest inhibited if ≥ 30VAC or DC at 4mm inputs
Voltage Measurement
ApplicationH-N, H-G, N-G and touch voltage (IEC 61010)
Range0.0V - 300VAC
Resolution0.1Hz
Accuracy± 2% ± 5 digits (between 10V - 270VAC)
Mains Frequency45.0 - 66.0Hz
Power Source
Maximum Current Rating20A @ 120V / 16A @ 230V
Duty cycle (@70°F ambient)16A to 20A, 3 min. on/ 10 min. off
10A to 15A, 3 min. on/ 5 min. off
0A to 10A, continuous
Applied Parts Connection Box
Size (L x W x D)6.1 x 2.6 x 1.1” (not including flying lead)
Weight0.33lbs
RatingCategory I
Environmental ProtectionIP 40
Impact rating5J
Meets the safety standardBS EN 61010-1:2010 Pollution degree 2
Voltage rating (maximum)230Vac
Powered Leakage Measurements
NFPA-99Ground leakage
Chassis leakage (Touch Current)
Patient lead leakage
Measuring Range0.1 - 9999μA
Measurement/Display Resolution0.1μA
Accuracy± 2%, ±5μA
Mains ReversalSoft key
Single Fault Conditions Open NeutralVia soft key
Open GroundVia soft key
EUT Load Current Measurement
Range0.0A - 20.0A
Resolution0.1A
Accuracy±5% ± 2 digits
Environmental
Operating temperature32 to 104°F
Humidity0 -98% Relative humidity, no-condensation
Storage temperature14 to 122°F
Altitude0 – 2185 yards
Ingress ProtectionIP 40
Operating pollution degree2, according to IEC 60529
General Specification
Weight2.5lbs (unit)
5lbs (complete with accessories)
Size (L x W x D)9 x 6 x 4”
