370A930

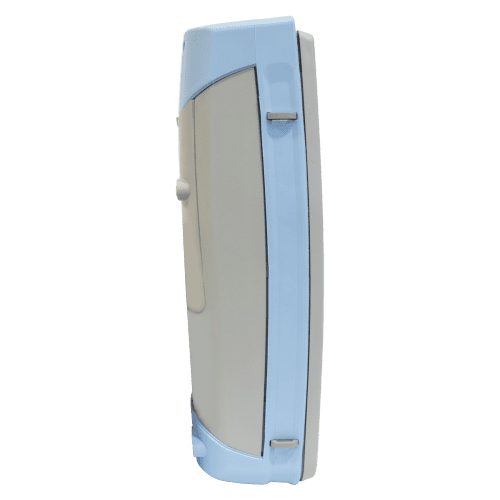

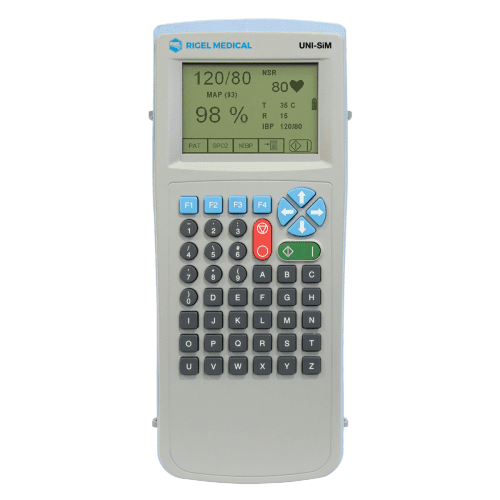

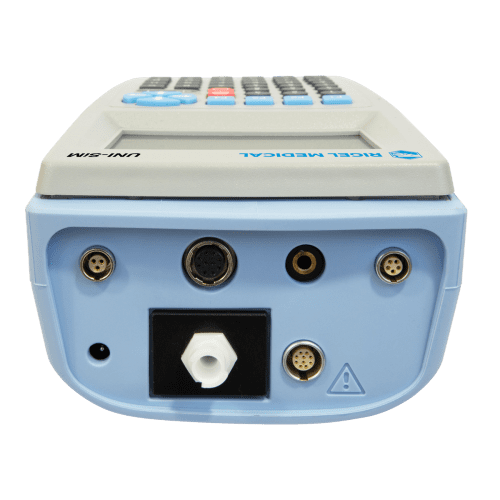

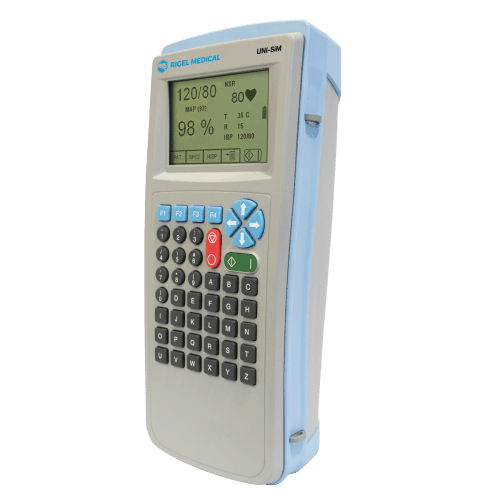

Rigel UNI-SIM Vital Signs Simulator

Vital Signs Simulator (NIBP / SPO2 and ECG)

– Accurate 6 in 1 vital signs simulation
– Synchronised heart rate
– Hand-held and Battery powered
– On-board memory and keyboard
– Manual and automatic operation
– Onboard data entry and storage
– Custom test protocols
– Download / Upload software

Where to buy Or ask us a question

6 in 1 Patient Simulator

Simulations of NIBP, SpO2, ECG, temperature, IBP and respiration

Portable and Battery Powered

Compact and battery operable for full portability testing

Onboard Data Storage

Store test results and uploaded simulation curves

Custom Test Sequences

Custom tests provide quick, simultaneous vital signs simulations

Rigel UNI-SiM Vital Signs Simulator

The Rigel UNI-SiM Vital Signs Simulator is a battery powered 6 in 1 vital signs simulator able to undertake six synchronised vital signs parameters tests.

Enabling quick, easy and accurate simulations of NiBP, SpO2, ECG, temperature, IBP and respiration functionality, the Rigel Uni-Sim Vital Signs Simulator is one of the most valuable tools around for measuring and simulating vital signs.

Utilising advanced technologies in both SPO2 ad NIBP simulation, The Uni-Sim reduces errors and minimises the test time. Manufacturer specific simulation curves can be created and uploaded to further aid the accuracy.

Bluetooth connectivity to a range of accessories and Med-eBase, comprehensive database software, ensures fast and easy download of test results, managing your asset database, creation of test sequences and producing test certificates.

Request a quote

Our team of sales advisors are on hand to help you with any queries you have about our Uni-Sim Patient Simulator.

Make an enquiry

Optional Accessories

IBP CABLES

All Accessories

Find out more

TEMPERATURE CABLES

Accessories

Find out more

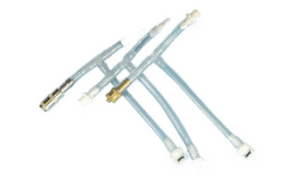

TUBING SET

All Accessories

Find out more

PULS-R

Vital Signs Simulators

Find out more

Technical Specifications

Non-invasive Blood Pressure
Simulation Waveform	Oscillometric
Integrated Pump	0 to 350 mmHg user configurable
Leak Test	User configurable between 0-350mmHg
Chronometer	Configurable upto 999 secs
Digital Manometer	0 – 410 mmHg
Pressure Accuracy	+/- 0.5% FS
Pressure Units	mmHg, inHg, kg/cm2, cmH2O, mBar, PSI, inH2O and kPa

Oxygen Saturation
Range	50 to 100%
Accuracy	± 1 bpm
Chronometer	Test option to test response time SpO2 monitor

ECG Arrhythmia Simulator
ECG	5 lead simulation including high level output
Wave Forms	Normal Sinus Rhythm (NSR), ST Elevation, ST Depression, Myocardial Infarction, Tall T
Rate	20 – 300 BPM typed value
Performance Waveforms	Sine, Square, Triangle, and Pulse
Pacer Waveforms	Synchronous Atrial, Asynchronous Atrial
Pacer Only	Pacer Pulse rate 60 BPM, Ventricular Pacer rate 70 BPM, Atrial & Ventricular Pacer Heart rate 70 BPM, R Wave Detection

Arrhythmia Waveforms
Atrial	Sinus Arrhythmia (SA), Missing beat, Atrial Flutter (AFLT), Atrial Fibrillation (AFB), Paroxysmal Atrial Tachycardia (PAT), Junctional Premature Contraction
Atrial Conduction	First Degree AV Block, Second Degree AV Block – Mobitz I, Second Degree AV Block – Mobitz II, Third Degree AV Block, Right Bundle Branch Block (RBB), Left Bundle Branch Block (LBB), Left Anterior Hemiblock
Ventricular	Premature Ventricular Contraction – Intermittent Premature Ventricular Contraction – Continuous, Bigeminy, Trigeminy, Ventricular Flutter (VFLT), Ventricular Fibrillation (VFB), Ventricular Tachycardia (VTC), Right Focal PVC

Temperature
Simulation	YSI 400 / 700 Static
Range	Preset at 25, 33, 37and 41°C

Respiration
Rates	5, 10, 15, 30, 60, 120, 180 Breaths per Minute
Base Resistances	250, 500, 750, 1000 ohms
Apnoea Simulation	0 – 60 seconds duration 0 – 300 seconds interval

Invasive Blood Pressure
Channels	2 channels
Static	0 to 300mmHg. Typed values
Dynamic	0 – 300mmHg for systolic & diastolic

General Specification
Operation	Battery cell, insitu charge
Battery Charger	110-230VAC, 50/60 Hz
Battery Life	4-24 hours testing depending on simulations
Memory Capacity	Approximately 10,000 records
Communication	Via Blue Tooth
Display	Monochorme, ¼ VGA full graphics
Keypad	Alpha-numeric
Weight	Less than 1.5 kg
Size (L x W x D)	270 x 110 x 75 mm / 10.5 x 4 x 3”
Operating Conditions	10-30°C, 0-90% RH – NC
Storage Environment	-15°C – +60°CC
Environmental Protection	IP 40

Downloads

UNI-SiM Manuall

UNI-SiM Datasheet

UNI-SiM Quick Start Guide

Rigel Uni-Sim Accessory List

Uni-Sim Firmware Update Version 4.14

Uni-SiM Declaration of Conformity

Data Transfer V1.03

O Curves

R Curves
