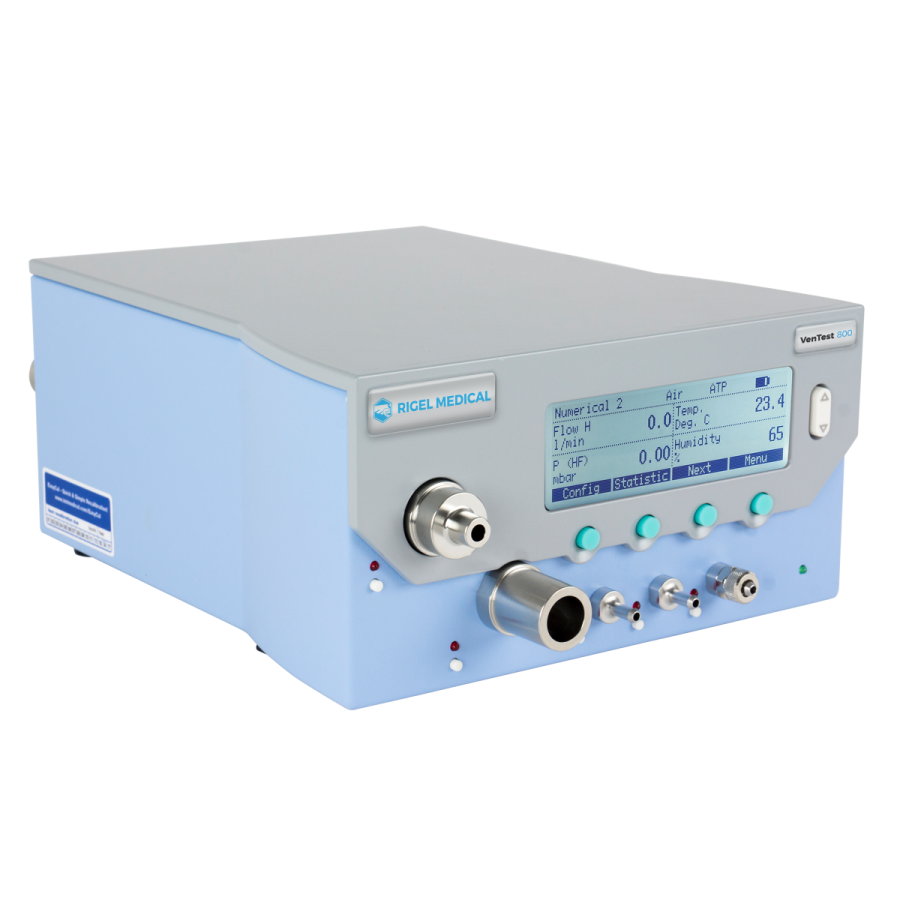

VenTest 800 Series
– Compatible with gas standards and gas type
– All-in-one gas flow analyzer
– Measures and calculates all common respiratory parameters
– Built-in data storage
– Portable with battery operation
– Compatible with gas standards and gas type
– All-in-one gas flow analyzer
– Measures and calculates all common respiratory parameters
– Built-in data storage
– Portable with battery operation
Manual
Manual
Datasheet
Data Storage |
---|
All parameters (measured as well as respiratory values) |
Electrical & Physical Data | |
---|---|
AC Input | 90 – 260VAC, 50-60Hz |
Battery (Lead Rechargeable Battery) | 3 hrs (with OR-703 2 hrs) |
Power Consumption | 23VA |
Weight | 3.7kg / 8lbs |
Dimensions (W x D x H) | 22 x 25 x 12cm / 7 x 10 x 5” |
RT-200 Emulation Mode |
---|
Simulates RT-200 style commands over the RS-232 interface |
Display | |
---|---|
Graphic Display | Intuitive user interface with numerical measuring values, statistics, volume trigger configuration, gas type selection and calibration menusDefault Spec Value |
Conditions | |
---|---|
Ambient Temperature | 15 – 40°C (59 – 104°F) |
Humidity | 5 – 95% RH |
Air Pressure | 700 – 1060 mbar |
Storage and Transport Temperature | -10–60°C |
Approvals | CE, CSA |
Communication Interfaces |
---|
USB for Windows Software FlowLab™, RS-232 for individual communication, TTL for external trigger and TSI4000 Protocol[br]Please note: The 2019 version of the VenTest Series does not feature an ethernet port or the earth bolt on the back of the device. |
