800A9311

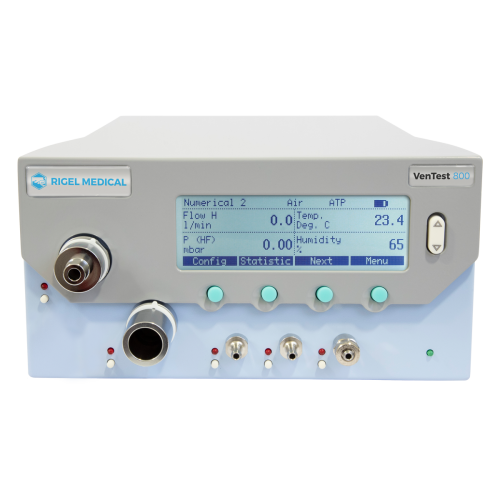

VenTest 800 Series Gas Flow Analyser
High-performance gas flow analyzers for ventilator measurement and calibration
– Compatible with gas standards and gas type
– All-in-one gas flow analyzer
– Measures and calculates all common respiratory parameters
– Built-in data storage
– Portable with battery operation

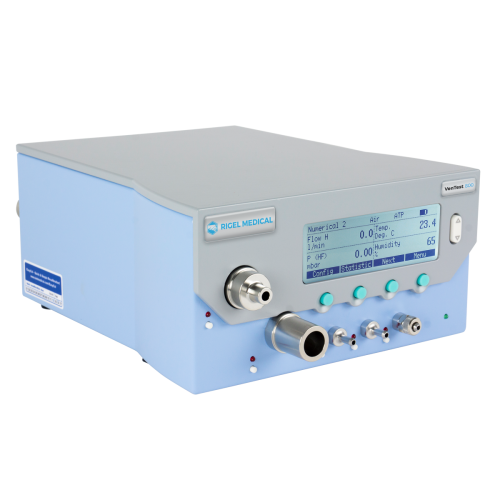

VenTest 800 Series Gas Flow Analyser
VenTest 800 – The standard model for universal applications
VenTest 810 VAC – Includes an additional sensor for vacuum measurements up to +/-1 bar
VenTest 820 LOW – Includes an additional sensor measuring minimal pressures up to 5 mbar
Measuring your pneumatic equipment for reliability and precision with a dependable calibration tool is critical in avoiding fatal errors. Precision and reliability are exactly what the VenTest Series provides.
The VenTest measures flow, pressure, temperature, humidity and O2 concentrations bi-directionally. The adult, pediatric and high-frequency ventilation measuring modes make the VenTest the ideal calibration tool for all ventilators, anesthesia machines and spirometers.
The VenTest distinguishes itself from other calibration tools by combining a simple, intuitive multilingual user interface with the most precise sensor technology.
Key features the VenTest 800 Series
- All-in-one analyzer
- Measures and calculates all common respiratory parameters
- Compatible with gas standards and gas type
- Built-in data storage with optional software for total traceability
- USB, RS-232 and external trigger interface
- Portable with battery operation
- Instant gas concentration measurements with optional MultiGasAnalyser™ OR-703

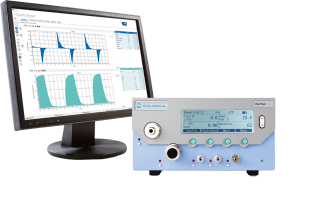

With the push of a button, all measured values can be stored directly on the VenTest and later retrieved for documentation purposes. Optional FlowLab™ software provides a simple and useful tool to analyze all ventilation parameters including real time flow / pressure curves, functional zoom and certification papers.
OR-703 Multi Gas Analyser
The OR-703 multi gas analyser expands the capabilities of the PF-300 series gas flow analysers. Its compact ad lightweight housing makes the OR-703 an ideal and integrated solution for the accurate measurement of anesthetic gas concentration.
Fast response without stabilisation time reduces the test time and offers greater accuracy thanks to its use of latest advances in micro system technology.
Seamless integration with the FlowLab software and PF-300 series provides direct interfacing of all data and offers a total bench solution. Battery operation supports the OR-703 as a complete portable multi gas analyser.
Data storage and test report printing give full traceability and peace of mind during quality control.
| Product | Part Number |
|---|---|
| VenTest 800 | 800A9311 |
| VenTest 810 | 800A9321 |
| Rigel VenTest 800 Kit | 800A9251 |
| Rigel VenTest 810 Kit | 800A9261 |
| Rigel VenTest 820 Kit | 800A9271 |
| Rigel VenTest 800 Kit Elite | 800A9281 |
| Rigel VenTest 810 Kit Elite | 800A9291 |
| Rigel VenTest 820 Kit Elite | 800A9301 |

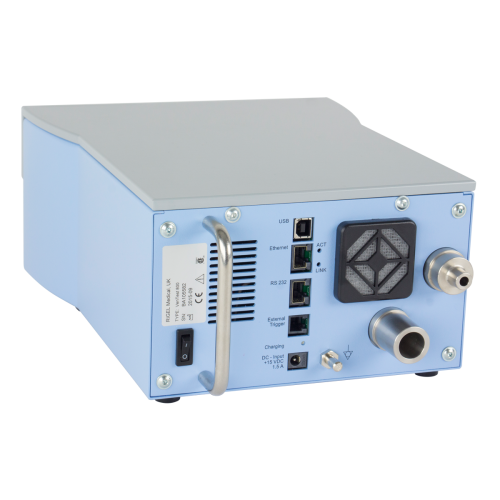

Please note: The 2019 version of the VenTest Series does not feature an ethernet port or the earth bolt on the back of the device.
Request a Quote
Optional Accessories
SMART LUNGS
Accessories
OR-703
Ventilator Testers
FLOWLAB SOFTWARE
Software And Apps
Technical Specifications
| Electrical & Physical Data | |
|---|---|
| AC Input | 90 – 260VAC, 50-60Hz |
| Battery (Lead Rechargeable Battery) | 3 hrs (with OR-703 2 hrs) |
| Power Consumption | 23VA |
| Weight | 3.7kg / 8lbs |
| Dimensions (W x D x H) | 22 x 25 x 12cm / 7 x 10 x 5” |
| Data Storage |
|---|
| All parameters (measured as well as respiratory values) |
| Display | |
|---|---|
| Graphic Display | Intuitive user interface with numerical measuring values, statistics, volume trigger configuration, gas type selection and calibration menusDefault Spec Value |
| RT-200 Emulation Mode |
|---|
| Simulates RT-200 style commands over the RS-232 interface |
| Communication Interfaces |
|---|
| USB for Windows Software FlowLab™, RS-232 for individual communication, TTL for external trigger and TSI4000 Protocol[br]Please note: The 2019 version of the VenTest Series does not feature an ethernet port or the earth bolt on the back of the device. |
| Conditions | |
|---|---|
| Ambient Temperature | 15 – 40°C (59 – 104°F) |
| Humidity | 5 – 95% RH |
| Air Pressure | 700 – 1060 mbar |
| Storage and Transport Temperature | -10–60°C |
| Approvals | CE, CSA |
Downloads
Do you own this product?
Register your VenTest 800 Series today to activate your warranty and to stay up to date with the latest product updates, news and support information.
Similar Products
CITREX H3
Gas Flow Analyzers
CITREX H4
Gas Flow Analyzers

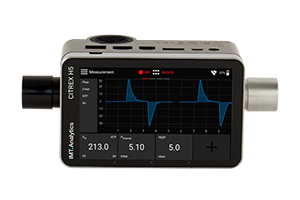

CITREX H5
