385A910

Multi-Flo Infusion Pump Analyser

Infusion Pump Analyzer that can double your test capacity

– IEC 60601-2-24 compliant
– 1, 2 and 4 individual channel configurations
– Instant flow and pressure
– Compatible with all infusion devices

Where to buy Or ask us a question

Remote Control Interface

Control the Multi-Flo features using our Med-eBase software on a PC

Multi-Channel Configurations

Test up to four infusion devices simultaneously

Instantaneous Flow

Onscreen graph for flow measurements, even at low flow rates

Data Storage

Fully traceable results and automatic data capture

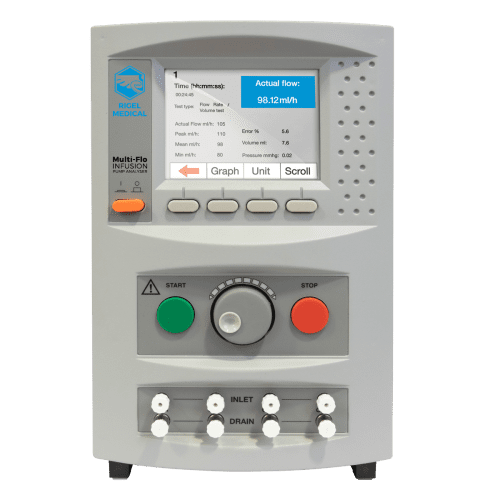

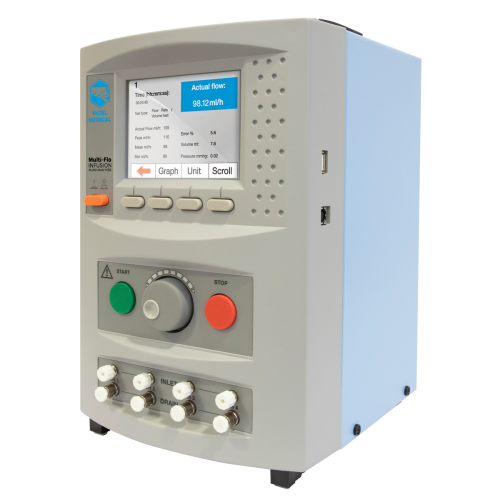

Multi-Flo Infusion Pump Analyzer

To help save even more time and to reduce the risk of human error, the Multi-Flo can also be programmed with manufacturer specific test routines which can then be automatically executed by the user on the device itself or controlled from a PC using the Med-eBase software solution.

Rigel Multi-Flo

Name	Part Number
Multi-Flo 1 Channel	385A910
Multi-Flo 2 Channel	385A920
Multi-Flo 4 Channel	385A940
Multi-Flo Multi Channel Upgrade Kit	385A950

Request a Quote

Make an enquiry

Technical Specifications

Flow Measurement
Display Range	0.010 to 1500ml/h
Max. Display Resolution	>10μl/h
Measured Range	0.100 to 1450ml/h

Flow Rare & Accuracy
701-1500ml/hr	1+x)% of reading where x = 0.0033% x (flow rate -700ml/hr)
10-700ml/hr	1% of reading
0.1-9.9ml/hr	1% of reading + 0.005 ml/hr
Volume	0.001 to 9999ml
Flow Update Rate	1Hz

Occlusion/Back Pressure Measurement
Pressure Measurement Range	-500 to 2500mmHg
Back Pressure Setting Range	-200 to 600mmHg
Accuracy	-500 to 1000mmHg ± 10mmHg 1000 to 2500mmHg ± 1% of reading
Unit	mmHg, PSI, Bar, kPa
Resolution	1mmHg

PCA / Bolus Measurements (Volume)
Display Range	0.1 to 100ml
Measuring Range	0.5 to 100m
Accuracy	± 1% of the reading
Max. Resolution	10μl
Basal Flow Rate	1ml to 30ml/h
Pressure	Max. 2500mmHg

General Specifications
Storage	15 x 24h of testing at 1 second sampling rate
Dimensions	300 x 204 x 220mm/11.8 x 8 x 8.6” (w x d x h)
Weight	5kg/11lbs (1 channel) 6kg/13lbs (2 channel) 8kg/18lbs (4 channel)
Mains Supply	90-264VAC, 50/60 Hz, 60W
Mains Cable	1ml to 30ml/h
Storage Environment	0–50°C / 32–122°F
Operating Conditions	15–40°C / 59–104°F
Environmental Protection	IP40
PC Communication	USB B
Keyboard Communication	USB A
Display	LCD color graphic display ¼” VGA
