800A948
Smart Lungs
Accurate, easy to use and versatile test lungs that reduce risk and avoid high costs
– Small, compact and durable design
– Adjustable compliance, resistance and leakage
– Compatible with all ventilators and aneasthesia machines
– Easy lung bag replacement

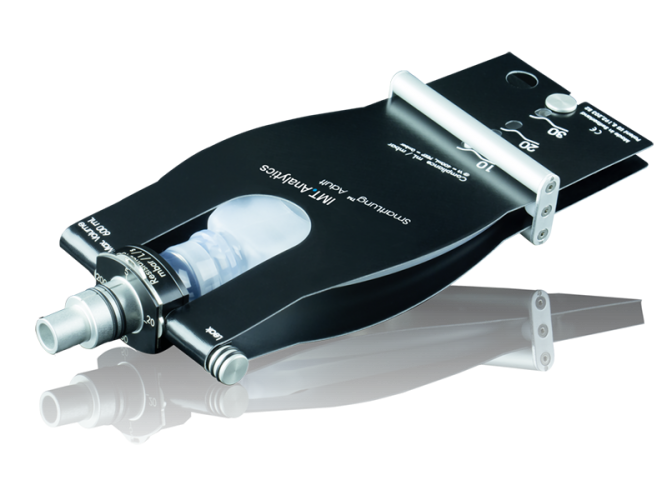

SmartLung Test Lungs
The SmartLung product line offers a truly versatile and cost effective way of simulating the lung characteristics of infants and adults without effecting the settings and operation of the ventilator or anaesthesia machines.
Adjustable compliance, resistance and leakage make the SmartLung an outstanding tool. Available in an adult and infant configuration, the SmartLung product line meets all the requirements from high to low flow and frequency applications.
Its unique design and user serviceable parts make the SmartLung not only cost effective, it also provides a valuable tool for life.
| Product | Part Number |
|---|---|
| Adult Smart Lungs | 800A948 |
| Infant Smart Lungs | 800A950 |
Request a Quote
Technical Specifications
| SmartLung Adult | |
|---|---|
| Resistance | 5, 20, 50, 200 mbar/L/s |
| Compliance | 10, 15, 20, 30 mL/mbar |
| Volume | 0 – 600 mL (with 1 L bag) |
| Leak | 0 – 10 L/min |
| Weight | 325 grams |
| Dimensions (L x W x H) | 300 x 115 x 40 mm |
| SmartLung Infant | |
|---|---|
| Resistance | 5, 20, 50, 200 mbar/L/s |
| Compliance | 1, 2, 3, 5 mL/mbar |
| Volume | 0 – 200 mL (with 0.5 L bag) |
| Leak | 0 – 10 L/min |
| Weight | 285 grams |
| Dimensions (L x W x H) | 270 x 115 x 40 mm |
| General Data | |
|---|---|
| Replaceable components | |
| Sterilisable |
