410A930
USA Only
– Rugged, reliable and portable design
– Large color display and easy to use interface
– Tests and fault conditions can be selected with a single key press
– Leakage testing to NFPA-99, ES 60601, IEC 62353 and 61010
– Ground bond testing to NFPA-99, IEC 62353 and 61010
– Accurate high current, low energy earth bond testing

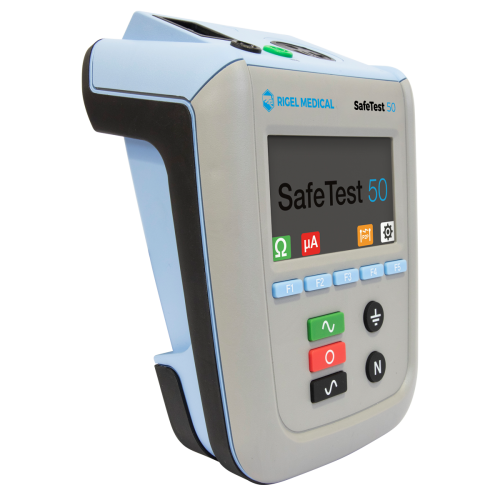

A compact, reliable and dedicated medical safety analyzer
Fast selection of the tests and manual control of fault conditions
Tests to a range of standards including NFPA-99, ES 60601, IEC 62353 and 61010

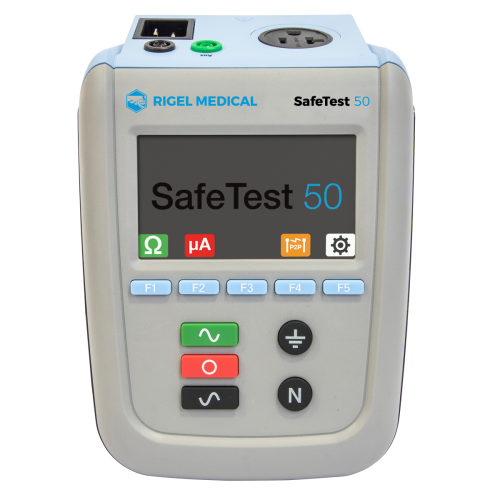

A large color display with a color-coded user interface
With a large color display and a color-coded user interface, it’s easy to select the required tests with a single key press. A fast selection of the test routine makes the testing process speedy and dependable.
While compact, the SafeTest 50 includes a range of safety tests to enable compliance with a range of international safety standards, including leakage testing to NFPA-99, ES 60601, IEC 62353 and 61010, ground bond testing to NFPA-99, IEC 62353 and 61010.
Full manual control offers the benefit of executing only those specific tests that are required and provide the user with full control of the power cycles, making testing simple, easy and fast.
Specific to ES 60601:
– Ground leakage
– Chassis leakage
Specific to NFPA-99:
– Ground leakage
– Chassis leakage
– Ground bond testingSpecific to IEC 62353:
– Equipment leakage
– Ground bond testing
Specific to IEC 61010:
– Touch leakage
– Touch voltage
– Ground bond testing
Electrical Safety Tests performed:
– Point-to-point testing
– Line voltage measurement
– Line frequency measurement
– Load current measurement
All Accessories
All Accessories
All Accessories
| Ground Continuity | |
|---|---|
| Method | 2 wire ZAP technique |
| Test Current | >± 200mA DC into 2Ω (zapper circuit) |
| Max Test Voltage | 4-24Vrms o/c |
| Measuring Range (low range | 0.001 – 0.999Ω / 0.001Ω resolution |
| Measuring Range (mid range) | 1.00 – 9.99Ω / 0.01Ω resolution |
| Accuracy | ± 1% of value, ± 5 mΩ |
| Circuit Protection | Test inhibited if ≥30VAC or DC at 4mm inputs |
| Powered Leakage Measurements | |
|---|---|
| IEC 62353 | Equipment Leakage (Direct) |
| ES 60601 | Ground + Chassis Leakage |
| NFPA-99 | Ground + Chassis Leakage |
| IEC 61010 | Touch Leakage, Touch Voltage |
| Test Voltage | Mains Supply Voltage |
| Measuring Range | 0.1- 9999µA (0.1-8000µA typical for IEC 61010) |
| Measurement / Display Resolution | 0.1µA |
| Accuracy | ± 2%, ± 5µA |
| Mains Reversa | Softkey |
| Single Fault Conditions | Open Neutral via softkey Open Ground via softkey |
| Frequency Response | ES 60601, NFPA-99, IEC 62353 and 61010 |
| Voltage Measurement | |
|---|---|
| Application | L-N, L-E, N-E and touch voltage (IEC 61010) |
| Range | 0.0V – 300VAC |
| Resolution | 0.1Hz |
| Accuracy | ± 2% ± 5 digits (between 10V – 270VAC) |
| Mains Frequency | 45.0 – 66.0Hz |
| EUT Load Current Measurement | |
|---|---|
| Range | 0A – 20A |
| Resolution | 0.1A |
| Accuracy | ±5% ± 2 digits |
| Power Source | |
|---|---|
| Maximum Current Rating | 20A @ 120V / 16A @ 230V |
| Duty Cycle | 15A to 20A, 5 min. on/5 min. off 10A to 15A, 7 min. on/3 min. off 0A to 10A, continuous |
| Mains Power | 90-264V 48-64Hz |

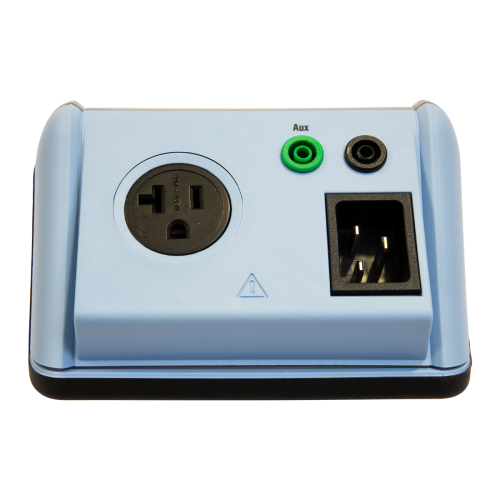

| DUT Socket | 20A / 120VAC NEMA 5-20R |
| General Specifications | |
|---|---|
| Weight | 2.5lbs (unit) 5lbs (complete with accessories) |
| Size (L x W x D) | 9 x 6 x 4” |
