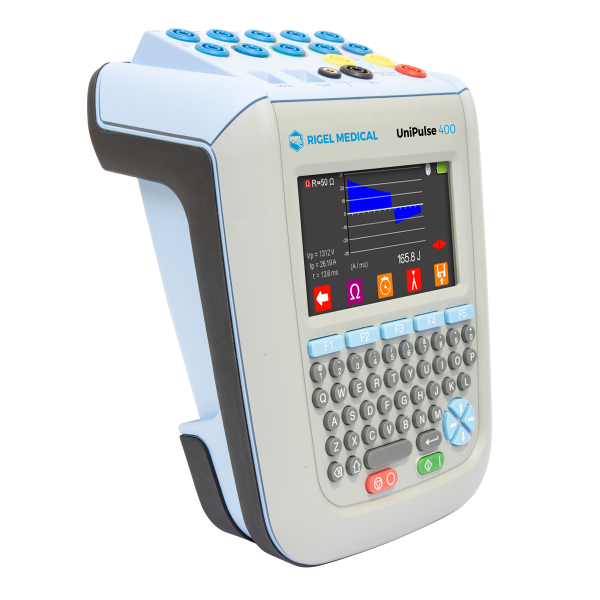

UniPulse 400

SPECIFICATIONS & MANUALS

If you're looking for the UniPulse 400 datasheet featuring full technical specifications or the instruction manual, you can find them here.

Manuals

Datasheets

Specifications

Defib - Energy Measurement
Load Resistance	50Ω ± 1% non-inductive
Range	0 - 199.9 Joules
Accuracy	± 1% of reading ± 1 Joule
Range (High)	200 - 600 Joules
Resolution	0.1 Joules
Voltage	0 - 5000 Volts
Current	0 - 100 Amps
Maximum pulse width	5μs – 120ms

AED Pulse Mode Waveforms
Normal Sinus Rhythm (NSR)	20 - 300 BPM, Amplitude 1.00mV(±2%)
Asystole (ASYS)
Ventricular Fibrillation - Coarse (VFBC)	240 BPM, Amplitude 1.00mV(±2%)
Ventricular Fibrillation - Fine (VFBF)	240 BPM, Amplitude 1.00mV(±2%)
Monomorphic Ventricular Tachycardia (MVT)	210 BPM, Amplitude 1.00mV(±2%)
Atrial Fibrillation (AFB)	20 - 300 BPM, Amplitude 1.00mV(±2%)

ECG Waveforms - Sinus
Normal Sinus Rhythm (NSR)	20 - 300 BPM, Amplitude 0.50 - 5.00mV(±2%)
ST Elevation (STE)	20 - 300 BPM, Amplitude 0.50 - 5.00mV(±2%)
ST Depression (STD)	20 - 300 BPM, Amplitude 0.50 - 5.00mV(±2%)
Myocardial Infarction (MI)	20 - 300 BPM, Amplitude 0.50 - 5.00mV(±2%)
Tall T (TT)	20 - 300 BPM, Amplitude 0.50 - 5.00mV(±2%)
Asystole (ASYS)

ECG Waveforms – Ventricular Arrhythmias
Premature Ventricular Contraction - Intermittent 80 BPM, Amplitude 0.50 - 5.00mV(±2%)	Default Spec Value
(PVCI)
Bigeminy (BIG)	80 BPM, Amplitude 0.50 - 5.00mV(±2%)
Trigeminy (TRIG)	80 BPM, Amplitude 0.50 - 5.00mV(±2%)
Ventricular Flutter (VFLT)	240 BPM, Amplitude 0.50 - 5.00mV(±2%)
Ventricular Fibrillation - Coarse (VFBC)	240 BPM, Amplitude 0.50 - 5.00mV(±2%)
Ventricular Fibrillation - Fine (VFBF)	240 BPM, Amplitude 0.50 - 5.00mV(±2%)
Monomorphic Ventricular Tachycardia (MVT)	210 BPM, Amplitude 0.50 - 5.00mV(±2%)
Right-focal Premature Ventricular Contraction	80 BPM, Amplitude 0.50 - 5.00mV(±2%)

ECG Waveforms – Atrial Conduction Arrhythmias
First Degree AV Bock (FAVB)	80 BPM, Amplitude 0.50 - 5.00mV(±2%)
Second Degree AV Block - Mobitz I (SAVB_MI)	80 BPM, Amplitude 0.50 - 5.00mV(±2%)
Second Degree AV Block - Mobitz II (SAVB_MII)	80 BPM, Amplitude 0.50 - 5.00mV(±2%)
Third Degree AV Block (TAVB)	50 BPM, Amplitude 0.50 - 5.00mV(±2%)

ECG Waveforms – Atrial Arrhythmias
Sinus Arrhythmia (SAR)	20 - 300 BPM, Amplitude 0.50 - 5.00mV(±2%)
Missing Beat (MB)	20 - 300 BPM, Amplitude 0.50 - 5.00mV(±2%)
Atrial Flutter (AFLT)	300 BPM, Amplitude 0.50 - 5.00mV(±2%)
Atrial Fibrillation (AFB)	20 - 300 BPM, Amplitude 0.50 - 5.00mV(±2%)
Paroxysmal Atrial Tachycardia (PAT)	180 BPM, Amplitude 0.50 - 5.00mV(±2%)
Premature Junctional Contraction (PJC)	20 - 300 BPM, Amplitude 0.50 - 5.00mV(±2%)

ECG Pacer Waveforms
Synchronous Atrial (AAI)	20 - 300 BPM, Pulse amplitude 0.50 – 5.00mV, Pulse width 0.1 – 2.0ms
Asynchronous Atrial (AOO)	20 - 300 BPM, Pulse amplitude 0.50 – 5.00mV, Pulse width 0.1 – 2.0ms
Pacer (PCR)	20 - 300 BPM, Pulse amplitude 0.50 – 5.00mV, Pulse width 0.1 – 2.0ms
Ventricular Pacer (VVI)	20 - 300 BPM, Pulse amplitude 0.50 – 5.00mV, Pulse width 0.1 – 2.0ms
Atrial & Ventricular Pacer (DDD)	20 - 300 BPM, Pulse amplitude 0.50 – 5.00mV, Pulse width 0.1 – 2.0ms
R-Wave Detection (RWD)	20 - 300 BPM, Pulse amplitude 0.50 – 5.00mV

ECG Performance Waveforms
Sine (SINE)	0.1 - 300Hz, 1.00 – 10.00mV
Square (SQ)	0.1 - 300Hz, 1.00 – 10.00mV
Triangle (TRI)	0.1 - 300Hz, 1.00 – 10.00mV
Sawtooth (SAW)	0.1 - 300Hz, 1.00 – 10.00mV
Inverse Sawtooth (INVSAW)	0.1 - 300Hz, 1.00 – 10.00mV
Pulse (PULSE)	0.1 - 300Hz, 0.50 – 5.00mV

ECG Noise Selection
Amplitude	Default Spec Value0 – 10.00mV
Frequency	50 - 60Hz

ECG Waveform Output
Low Level	Low Level
Hi Level	Output Jack

ECG Accuracy
Rate	Default Spec Value± 1%
Amplitude	± 2% (LA-LL), ± 10% (Paddles)
	Lead II : 1 – 10 mV (in steps of 0.5 mV).
	Other leads are proportional to Lead II by the following percentages:
	Lead I : 60 %
	Lead II : 100 %
	Lead III : 40 %
	V1 : 63 % [ Reference LA ]
	V2 : 71 % [ Reference LA ]
	V3 : 68 % [ Reference LA ]
	V4 : 80 % [ Reference LA ]
	V5 : 55 % [ Reference LA ]
	V6 : 49 % [ Reference LA ]

Pacer Input
Fix Load	50Ω
Accuracy	+/- 4% + 10µJ
Over voltage protection	5000V
Variable Load	50 to 1600Ω in 50Ω steps
Pulse Rate	5.0 to 800 ppm
Heart rate selection	20 – 300 bpm
Under & overdrive	85% (20 bpm min) and 115% (300 bpm max)
Wave form selection	NSR, VFibC, VFibF, MVT, AFib, Missing Beat, R-Wave detection
Pulse Current Amplitude	5.00 – 200mA
Accuracy +/-	(1% rdg +0.02mA)
Current Measurements	Average (RMS), Leading edge, Trailing edge, Peak (the highest during the pulse)
Pulse Width	1.00 - 100ms
Pulse Energy	1µJ – 2.00J

Pacer Manufacturer Algorithms
CU Medical, GE, HP, Laerdal, Mindray, Philips, PhysioControl, Schiller, WelchAllyn, Zoll

Pacer Refractory Periods
Refractory Period test	15 – 500mS (Paced and sensed)
Accuracy	+/- 1ms

Pacer Sensitivity Test
Wave form, R Wave	Polarity Normal and Reversed, selectable
Dynamic Sensitivity	0.05mV to 5.00mV in 50µV steps

Pacer Interference Test (Immunity)
Heart rate	20-300 bpm
Frequency	50 or 60 Hz
Noise level in mV	0-15.0mV

General Specifications
Dimensions	220mm x 150mm x 90mm (L x W x H)
Weight	1.5kg
Operation	9.6V/2400mAh Nickel Metal Hydride battery pack
Battery charge time	2.5 hours
Battery capacity (fully charged)	12 hours
Mains supply	110/230V AC; 48 to 66Hz, 35VA power supply
Storage environment	-15°C to +60°C
Operating conditions	0°C to +40°C
Environmental protection	IP 40
Communication	USB
Display LCD colour graphic display	¼” VGA
Memory	100 test results including graphs
Impact rating	5J

Defib - Energy Measurement
Load Resistance	50Ω ± 1% non-inductive
Range	0 - 199.9 Joules
Accuracy	± 1% of reading ± 1 Joule
Range (High)	200 - 600 Joules
Resolution	0.1 Joules
Voltage	0 - 5000 Volts
Current	0 - 100 Amps
Maximum pulse width	5μs – 120ms

AED Pulse Mode Waveforms
Normal Sinus Rhythm (NSR)	20 - 300 BPM, Amplitude 1.00mV(±2%)
Asystole (ASYS)
Ventricular Fibrillation - Coarse (VFBC)	240 BPM, Amplitude 1.00mV(±2%)
Ventricular Fibrillation - Fine (VFBF)	240 BPM, Amplitude 1.00mV(±2%)
Monomorphic Ventricular Tachycardia (MVT)	210 BPM, Amplitude 1.00mV(±2%)
Atrial Fibrillation (AFB)	20 - 300 BPM, Amplitude 1.00mV(±2%)

ECG Simulator
ECG simulation with hi-level output.

ECG Waveforms - Sinus
Normal Sinus Rhythm (NSR)	20 - 300 BPM, Amplitude 0.50 - 5.00mV(±2%)
ST Elevation (STE)	20 - 300 BPM, Amplitude 0.50 - 5.00mV(±2%)
ST Depression (STD)	20 - 300 BPM, Amplitude 0.50 - 5.00mV(±2%)
Myocardial Infarction (MI)	20 - 300 BPM, Amplitude 0.50 - 5.00mV(±2%)
Tall T (TT)	20 - 300 BPM, Amplitude 0.50 - 5.00mV(±2%)
Asystole (ASYS)

ECG Waveforms – Ventricular Arrhythmias
Premature Ventricular Contraction - Intermittent 80 BPM, Amplitude 0.50 - 5.00mV(±2%)	Default Spec Value
(PVCI)
Bigeminy (BIG)	80 BPM, Amplitude 0.50 - 5.00mV(±2%)
Trigeminy (TRIG)	80 BPM, Amplitude 0.50 - 5.00mV(±2%)
Ventricular Flutter (VFLT)	240 BPM, Amplitude 0.50 - 5.00mV(±2%)
Ventricular Fibrillation - Coarse (VFBC)	240 BPM, Amplitude 0.50 - 5.00mV(±2%)
Ventricular Fibrillation - Fine (VFBF)	240 BPM, Amplitude 0.50 - 5.00mV(±2%)
Monomorphic Ventricular Tachycardia (MVT)	210 BPM, Amplitude 0.50 - 5.00mV(±2%)
Right-focal Premature Ventricular Contraction	80 BPM, Amplitude 0.50 - 5.00mV(±2%)

ECG Waveforms – Atrial Conduction Arrhythmias
First Degree AV Bock (FAVB)	80 BPM, Amplitude 0.50 - 5.00mV(±2%)
Second Degree AV Block - Mobitz I (SAVB_MI)	80 BPM, Amplitude 0.50 - 5.00mV(±2%)
Second Degree AV Block - Mobitz II (SAVB_MII)	80 BPM, Amplitude 0.50 - 5.00mV(±2%)
Third Degree AV Block (TAVB)	50 BPM, Amplitude 0.50 - 5.00mV(±2%)

ECG Waveforms – Atrial Arrhythmias
Sinus Arrhythmia (SAR)	20 - 300 BPM, Amplitude 0.50 - 5.00mV(±2%)
Missing Beat (MB)	20 - 300 BPM, Amplitude 0.50 - 5.00mV(±2%)
Atrial Flutter (AFLT)	300 BPM, Amplitude 0.50 - 5.00mV(±2%)
Atrial Fibrillation (AFB)	20 - 300 BPM, Amplitude 0.50 - 5.00mV(±2%)
Paroxysmal Atrial Tachycardia (PAT)	180 BPM, Amplitude 0.50 - 5.00mV(±2%)
Premature Junctional Contraction (PJC)	20 - 300 BPM, Amplitude 0.50 - 5.00mV(±2%)

ECG Pacer Waveforms
Synchronous Atrial (AAI)	20 - 300 BPM, Pulse amplitude 0.50 – 5.00mV, Pulse width 0.1 – 2.0ms
Asynchronous Atrial (AOO)	20 - 300 BPM, Pulse amplitude 0.50 – 5.00mV, Pulse width 0.1 – 2.0ms
Pacer (PCR)	20 - 300 BPM, Pulse amplitude 0.50 – 5.00mV, Pulse width 0.1 – 2.0ms
Ventricular Pacer (VVI)	20 - 300 BPM, Pulse amplitude 0.50 – 5.00mV, Pulse width 0.1 – 2.0ms
Atrial & Ventricular Pacer (DDD)	20 - 300 BPM, Pulse amplitude 0.50 – 5.00mV, Pulse width 0.1 – 2.0ms
R-Wave Detection (RWD)	20 - 300 BPM, Pulse amplitude 0.50 – 5.00mV

ECG Performance Waveforms
Sine (SINE)	0.1 - 300Hz, 1.00 – 10.00mV
Square (SQ)	0.1 - 300Hz, 1.00 – 10.00mV
Triangle (TRI)	0.1 - 300Hz, 1.00 – 10.00mV
Sawtooth (SAW)	0.1 - 300Hz, 1.00 – 10.00mV
Inverse Sawtooth (INVSAW)	0.1 - 300Hz, 1.00 – 10.00mV
Pulse (PULSE)	0.1 - 300Hz, 0.50 – 5.00mV

ECG Noise Selection
Amplitude	Default Spec Value0 – 10.00mV
Frequency	50 - 60Hz

ECG Waveform Output
Low Level	Low Level
Hi Level	Output Jack

ECG Accuracy
Rate	Default Spec Value± 1%
Amplitude	± 2% (LA-LL), ± 10% (Paddles)
	Lead II : 1 – 10 mV (in steps of 0.5 mV).
	Other leads are proportional to Lead II by the following percentages:
	Lead I : 60 %
	Lead II : 100 %
	Lead III : 40 %
	V1 : 63 % [ Reference LA ]
	V2 : 71 % [ Reference LA ]
	V3 : 68 % [ Reference LA ]
	V4 : 80 % [ Reference LA ]
	V5 : 55 % [ Reference LA ]
	V6 : 49 % [ Reference LA ]

Pacer Input
Fix Load	50Ω
Accuracy	+/- 4% + 10µJ
Over voltage protection	5000V
Variable Load	50 to 1600Ω in 50Ω steps
Pulse Rate	5.0 to 800 ppm
Heart rate selection	20 – 300 bpm
Under & overdrive	85% (20 bpm min) and 115% (300 bpm max)
Wave form selection	NSR, VFibC, VFibF, MVT, AFib, Missing Beat, R-Wave detection
Pulse Current Amplitude	5.00 – 200mA
Accuracy +/-	(1% rdg +0.02mA)
Current Measurements	Average (RMS), Leading edge, Trailing edge, Peak (the highest during the pulse)
Pulse Width	1.00 - 100ms
Pulse Energy	1µJ – 2.00J

Pacer Manufacturer Algorithms
CU Medical, GE, HP, Laerdal, Mindray, Philips, PhysioControl, Schiller, WelchAllyn, Zoll

Pacer Refractory Periods
Refractory Period test	15 – 500mS (Paced and sensed)
Accuracy	+/- 1ms

Pacer Sensitivity Test
Wave form, R Wave	Polarity Normal and Reversed, selectable
Dynamic Sensitivity	0.05mV to 5.00mV in 50µV steps

Pacer Interference Test (Immunity)
Heart rate	20-300 bpm
Frequency	50 or 60 Hz
Noise level in mV	0-15.0mV

General Specifications
Dimensions	220mm x 150mm x 90mm (L x W x H)
Weight	1.5kg
Operation	9.6V/2400mAh Nickel Metal Hydride battery pack
Battery charge time	2.5 hours
Battery capacity (fully charged)	12 hours
Mains supply	110/230V AC; 48 to 66Hz, 35VA power supply
Storage environment	-15°C to +60°C
Operating conditions	0°C to +40°C
Environmental protection	IP 40
Communication	USB
Display LCD colour graphic display	¼” VGA
Memory	100 test results including graphs
Impact rating	5J
