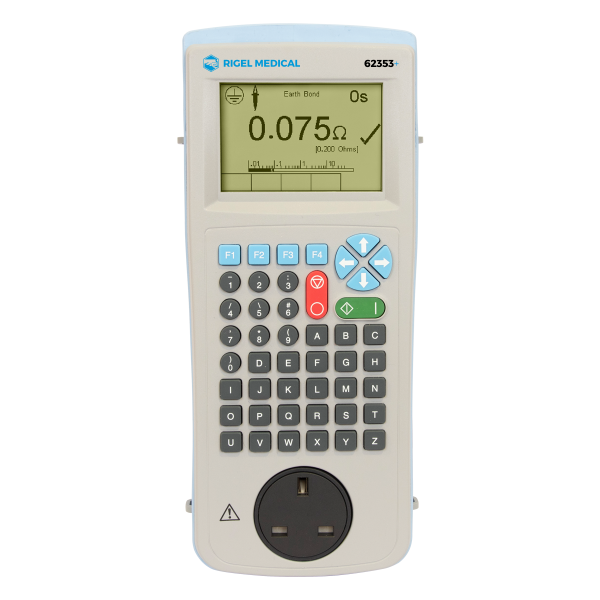

62353+
SPECIFICATIONS & MANUALS
If you're looking for the 62353+ datasheet featuring full
technical specifications or the instruction manual, you can find them here.
Manuals
Datasheets
Specifications
| Insulation Resistance | |
|---|---|
| Measurement | EUT to earth/ground, EUT to AP, AP to earth/ground |
| Voltage | 50 / 100 / 250 & 500V DC @1mA |
| Range (low range) @ 50V DC | 0.01Mohms - 10 Mohms |
| Range (low range) @ Above 50V DC | 0.01Mohms - 20Mohms |
| Accuracy (low range) | ± 5% of reading +2 counts |
| Range (high range) @ 250V DC | 20Mohms – 50Mohms |
| Range (high range) @ 500V DC | 20Mohms – 100Mohms |
| Accuracy (high range) | ±10% +2 counts |
| Resolution | 0.01Mohms |
| Differential Leakage Measurement | |
|---|---|
| Measuring Range | 75μA to 9999μA |
| Accuracy | ±5% of reading + 5 counts |
| Measurement / display resolution | 1μA |
| Measurement Type | True RMS |
| Measuring Device | Frequency response characteristics to IEC 60601-1 |
| Power Measurement | |
|---|---|
| Method | VA rating |
| Range | 0.1kVA – 4kVA |
| Accuracy | ±10% + 2 counts |
| IEC Mains Lead Test | |
|---|---|
| Test Duration | IEC Mains Lead Test |
| Test | Continuity of all conductors, Insulation and Polarity |
| Standard Accessories (supplied with 62353+) | |
|---|---|
| Calibration certificate | |
| Carrying case | |
| Earth/ground bond test probe with clip | |
| Earth/ground bond clip lead | |
| Patient Applied part module | |
| 2 Applied part adaptors | |
| Detachable 2 meter mains cable | |
| Electronic instruction manual | |
| Quick start guide | |
| Application software | |
| Earth Continuity | |
|---|---|
| Method | 2 wire technique, using 'zero' lead function. |
| Test Current | >+200mA, -200mA DC into 2 ohms |
| Max Test Voltage | 4-24V RMS o/c |
| Measuring Range (low range) | 0.001 – 0.999 ohms @ 0.001 ohms resolution |
| Measuring Range (mid range) | 1.00 – 9.99 ohms /@ 0.01 ohms resolution |
| Measuring Range (high range) | 10.0 – 19.9 ohms @ 0.1 ohms resolution |
| Accuracy | ± 3% of reading + 10 m ohms |
| Direct Leakage Measurement | |
|---|---|
| Measuring Range | 4μA to 9999μA |
| Accuracy | ± 5% or reading +2 counts |
| Measuring Device | As per IEC 60601-1 requirements |
| Measurement Type | True RMS |
| Alternative Leakage Measurements | |
|---|---|
| Test Voltage | 250V at mains frequency |
| Test Current | 3.5 mA current limited |
| Measurement Range | 4μA to 9999μA |
| Measurement Resolution | 1μA |
| Measurement Accuracy | ±5% of reading + 2 counts |
| Measurement Type | True RMS |
| Measuring Device | As per IEC 60601-1 |
| Mains Outlet Test | |
|---|---|
| Input voltage range | 0-300V AC |
| Max current | 16A |
| Measures | L – E, N – E |
| Accuracy | ± 5% of reading + 2 counts |
| General Specification | |
|---|---|
| Mains Power | 230V AC ±10%, 50-60Hz +/- 1Hz, 120V AC ±10%, 60Hz +/- 1Hz (USA model) |
| Battery | 6 x 1.5V AA (Batteries not included) |
| Weights | 1.6 kg / 3.5 lbs including batteries |
| Size | (L x W x D) 270 x 110 x 75 mm / 10.5 x 4 x 3” |
| Operating Conditions | 0'C - 40'C, 32'F - 104'F, 0-90% RH - NC |
| Storage Environment | -15'C - +60'C / 5'F - 140'F |
| Environmental Protection | IP 40 |
