800A948

Smart Lungs

Accurate, easy to use and versatile test lungs that reduce risk and avoid high costs

- Small, compact and durable design
- Adjustable compliance, resistance and leakage
- Compatible with all ventilators and aneasthesia machines
- Easy lung bag replacement

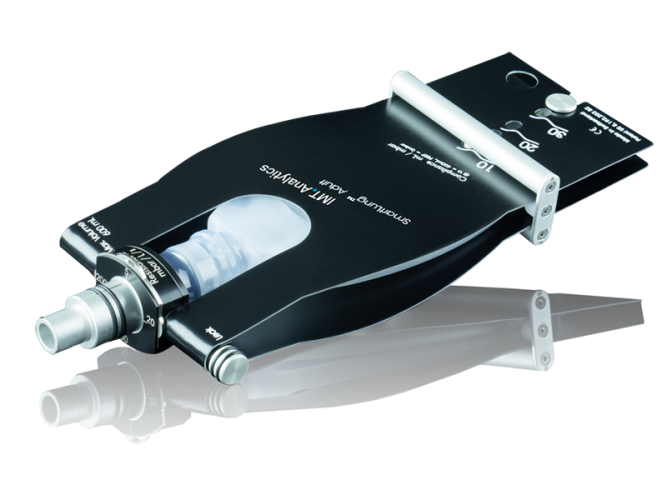

SmartLung Test Lungs

The SmartLung product line offers a truly versatile and cost effective way of simulating the lung characteristics of infants and adults without effecting the settings and operation of the ventilator or anaesthesia machines.

Adjustable compliance, resistance and leakage make the SmartLung an outstanding tool. Available in an adult and infant configuration, the SmartLung product line meets all the requirements from high to low flow and frequency applications.

Its unique design and user serviceable parts make the SmartLung not only cost effective, it also provides a valuable tool for life.

Product Part Number
Adult Smart Lungs 800A948
Infant Smart Lungs 800A950

Request a Quote


Technical Specifications

SmartLung Adult
Resistance5, 20, 50, 200 mbar/L/s
Compliance10, 15, 20, 30 mL/mbar
Volume0 - 600 mL (with 1 L bag)
Leak0 - 10 L/min
Weight325 grams
Dimensions (L x W x H)300 x 115 x 40 mm
General Data
Replaceable components
Sterilisable
SmartLung Infant
Resistance5, 20, 50, 200 mbar/L/s
Compliance1, 2, 3, 5 mL/mbar
Volume0 - 200 mL (with 0.5 L bag)
Leak0 - 10 L/min
Weight285 grams
Dimensions (L x W x H)270 x 115 x 40 mm
